GE IC693DNM200

GE IC693DNM200

• Model: IC693DNM200
• Manufacturer: GE Fanuc
• Product Type: DeviceNet scanner module
• Compatibility: GE Fanuc Series 90-30 PLC system

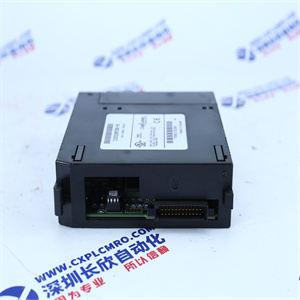

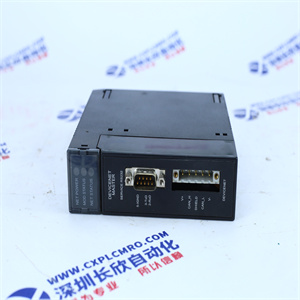

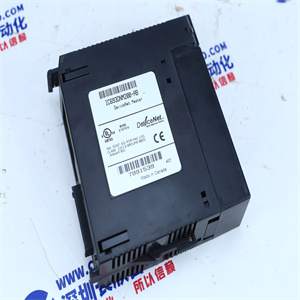

The GE IC693DNM200 is a DeviceNet Master module that is designed to be used with GE Fanuc Series 90-30 PLC systems. It provides a high-speed communication link between the PLC and other devices on a DeviceNet network.

Some of the key features and parameters of the IC693DNM200 include:

• Supports up to 64 DeviceNet nodes
• Provides a maximum data transfer rate of 500 kbps
• Supports DeviceNet I/O messaging and explicit messaging
• Includes built-in diagnostics and fault detection capabilities
• Supports both polled and change-of-state messaging
• Can be configured using GE Fanuc’s Proficy Machine Edition software

The GE IC693DNM200 is a DeviceNet Master module used in GE Fanuc Series 90-30 PLC systems. It provides a high-speed communication link between the PLC and other devices on a DeviceNet network, allowing for real-time data exchange and control. The module supports up to 63 nodes on the network and can be configured using GE Fanuc’s Proficy Machine Edition software. It also features LED indicators for power, network status, and communication activity. The IC693DNM200 is a reliable and efficient solution for integrating DeviceNet devices into a GE Fanuc PLC system.

Pacific Scientific SC320 Servo Drive Controller SC322A

Pacific Scientific SC722 Servo Drive SC722A001 115/230V

R43GENA-R2-NS-N​V-07 PACIFIC SCIENTIFIC AC SERVO MOTOR*

Pacific Scientific Servo Motor+Brake&Reducer 10:1

Pacific Scientific E31NSLC-LSS-SS-​02 NEMA34 Step Motor

Pacific Scientific SC902 Servo Drive SC902-001-01*Test

Pacific Scientific Servo Control SC423-456-T4(3710)

Key Features and Parameters:

• DeviceNet Communication: The module allows communication with DeviceNet devices on a DeviceNet network.
• Scanning: It scans the network for DeviceNet devices and provides data transfer between the devices and the PLC system.
• Channel Capacity: The module has two independent scanner channels, each capable of supporting up to 63 DeviceNet devices.
• Integrated Diagnostics: It features built-in diagnostics for network monitoring, device status, and network troubleshooting.
• Data Transfer: The module supports both input (from DeviceNet devices to PLC) and output (from PLC to DeviceNet devices) data transfer.
• Configuration: It can be configured using GE Fanuc programming software, such as Proficy Machine Edition.
• Power Consumption: The module requires +5V DC power for operation.
• Installation: It can be easily installed into a GE Fanuc Series 90-30 PLC rack, using the standard 5 or 10-slot rack.
• Dimensions: The module has a compact form factor and fits into a single slot in the PLC rack.

Please note that for detailed technical specifications, wiring diagrams, and programming guidelines, it is advisable to refer to the product documentation provided by GE Fanuc.
