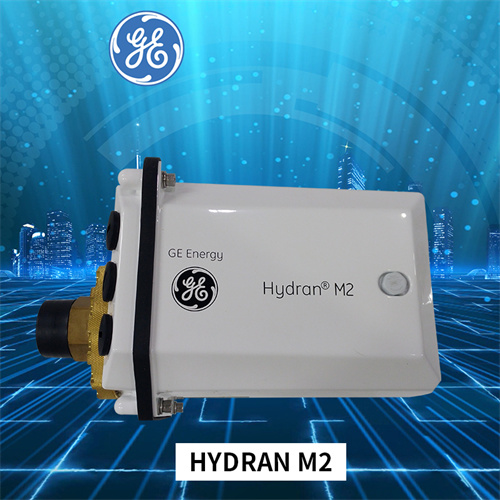

GE-HYDRAN-M2

GE-HYDRAN-M2 is an advanced transformer monitoring device produced by General Electric(GE).The following is a detailed introduction to the device:

I.Product Overview

GE-HYDRAN-M2(Hydran™M2)is a continuous online dissolved gas and moisture in oil monitoring device designed to provide critical transformer monitoring information to detect potential problems early and minimize the risk of unexpected power outages.

GE-HYDRAN-M2

II.Main Features

Continuous Monitoring:

Real-time monitoring of fault gases(such as hydrogen,carbon monoxide,ethylene,acetylene,etc.)and moisture dissolved in transformer oil.

By connecting other sensors(such as top and bottom tank oil temperature,transformer load or ambient temperature),more information can be captured for more in-depth analysis.

Real-time Alarm:

When abnormal levels of fault gas or moisture are monitored,the device will sound an alarm.

Two alarm levels(such as”Alarm”and”Alarm”)can be set to show increasing severity.

GE-HYDRAN-M2

Data Analysis:

Record and analyze transformer operating data to help users understand the health of the transformer.

Provide a transformer mathematical model based on IEEE standards to convert the received data into useful real-time information.

Easy to integrate:

Multiple communication options and protocols simplify integration with SCADA or DCS.

Compatible with GE’s Perception™software for downloading and trending transformer data.

Rugged:

With a high degree of protection,it can operate stably in harsh environments.

Automatic self-test every 15 days,triggering a service alarm if a fault is detected(such as power failure,oil valve closed,sensor failure).

Wide application:

Applicable to transformers using mineral insulating oil,and also suitable for ester-based oil(natural or synthetic oil).

Easy to permanently install on a single transformer oil valve,without additional pipes or pumps.

III.Technical specifications(partial)

Supported gas sensor types:traditional”composite gas”or more basic”hydrogen only”sensors.

Humidity sensors are used to measure moisture in the oil.

A mathematical model of mineral oil transformers based on IEEE standards is provided.

Possible model output examples include estimated winding hot spot temperature,humidity in paper,moisture bubbling temperature,insulation aging,overload capacity,cooling efficiency,and OLTC temperature difference.

IV.Application Scenarios

GE-HYDRAN-M2 is widely used as an integrated solution for important medium-sized transformers in power facilities,as well as places such as industrial plants that require high-reliability transformer monitoring.It helps reduce the risk of process interruptions due to power outages and minimizes costly downtime.

V.Summary

GE-HYDRAN-M2 is a powerful,reliable,easy-to-use,flexible and easy-to-integrate transformer monitoring device.It provides continuous online monitoring,real-time alarms,data analysis and easy integration to meet the application needs of a variety of different industrial automation and control systems.
