GE HE693RTD600

GE HE693RTD600

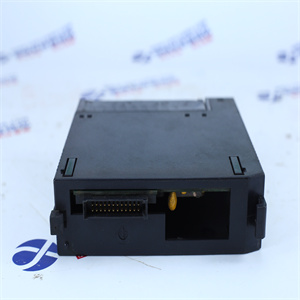

The GE HE693RTD600 is a 6-channel RTD (Resistance Temperature Detector) module used in the GE Fanuc Series 90-30 PLC system. It is designed to measure temperature using RTD sensors and convert the readings into digital signals for processing by the PLC.

Some key parameters of the HE693RTD600 module include:

• Input channels: 6
• Input type: RTD (Pt100, Pt1000, Ni100, Cu10)
• Input range: -200 to 850 degrees Celsius
• Resolution: 0.1 degrees Celsius
• Accuracy: +/- 0.2% of full scale
• Update rate: 100ms per channel
• Isolation: 1500V AC between input and output
• Power supply: 5V DC from the PLC backplane
• Dimensions: 4.8 x 12.2 x 2.5 inches (122 x 310 x 64 mm)
• Weight: 1.2 lbs (0.54 kg)

The HE693RTD600 module is commonly used in industrial applications where temperature monitoring and control are critical, such as in chemical processing, food and beverage production, and HVAC systems.

LINCOLN ELECTRIC G2862-1 DISPLAY/KEYPAD BOARD G28621

CKD NAB2W-80F-0 VALVE NAB2W80F0 NIB

KRISTEL CORPORATION 25EM-D42 MONITOR

PARKER P5T-H100DHSE075 CYLINDER P5TH100DHSE075 NEW

TAPTONE C-403-25-1 MINI FOOT PROXIMITY SENSOR NEW

LABEL-AIRE 7465655 ECL C DISPLAY/KEYPAD MODULE NEW

NEW DENISON T6CB173R00B1 HYDRAULIC PUMP

NIB ROSS 2771B9001 VALVE 2 2W NC L INT PQUEEN

MINEBEA NMB NS103-200K-7131​-D5 TRANSDUCER

The GE HE693RTD600 is a 6-channel RTD (Resistance Temperature Detector) input module for the GE Fanuc Series 90-30 PLC system. It is designed to measure temperature using RTD sensors and convert the signals into digital values for processing by the PLC.

The module supports six RTD inputs, which can be configured for different types of RTD sensors, including platinum, copper, and nickel. It also provides built-in cold junction compensation and linearization for accurate temperature measurement.

The HE693RTD600 module has the following specifications:

• Input channels: 6
• Input type: RTD (Resistance Temperature Detector)
• Input range: -200°C to +850°C
• Input impedance: 100 ohms (Pt), 10 ohms (Cu/Ni)
• Accuracy: ±0.1% of full scale
• Update rate: 100ms per channel
• Isolation: 1500V AC between input and backplane
• Power consumption: 2.5W max

The module is compatible with the GE Fanuc Series 90-30 PLC system and can be easily installed and configured using the programming software. It is commonly used in industrial applications where temperature measurement is critical, such as in chemical processing, food and beverage production, and HVAC systems.
