GE 369-HI-R-M-0-0-0-E is a motor management digital relay produced by General Electric(GE),which belongs to GE’s Multilin series.The following is a detailed analysis of this relay:
1.Product Overview
GE 369-HI-R-M-0-0-0-E motor management digital relay is a device used to monitor and protect three-phase motors and their mechanical systems.It is designed to measure key parameters of the motor,such as cooling rate,time required to accelerate to full function,and motor inrush current value,and provide protection for the motor based on these parameters.

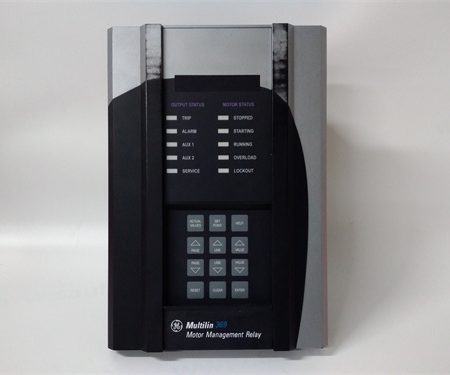

GE 369-HI-R-M-0-0-0-E
2.Functional Features
Motor protection:This relay is able to monitor the operating status of the motor and provide protection when abnormal conditions are detected,such as overload,overheating,ground fault,etc.
FlexCurve(TM)overload curve:GE 369-HI-R-M-0-0-0-E provides an overload curve customization function called FlexCurve(TM),which allows users to customize it according to the specific needs of the motor.
Multiple measurement functions:The relay can measure quantities such as voltage,watts,frequency,and energy,and generate protection functions based on the generated value data.
Event recording:After tripping,the relay can immediately report the cause of the trip as well as the temperature and data valuesat the time of tripping,which helps users analyze problems in the system.
Pre-trip alarm:The relay can notify the user before tripping due to ground faults,mechanical blockages,RTD overtemperature,etc.,providing early warning functions.
Motor health report:The relay can use learned information and the history of system trips to identify when and where maintenance may be required,providing an assessment of the motor health status.
III.Application areas
GE 369-HI-R-M-0-0-0-E motor management digital relay is widely used in industrial automation equipment that requires motor control,such as manufacturing,chemical,power,oil and gas industries.It is suitable for the protection and monitoring of medium-sized motors,helping to improve production efficiency,reduce maintenance costs and extend equipment life.
GE 369-HI-R-M-0-0-0-E
IV.Product advantages
High-precision measurement:The relay can accurately measure the key parameters of the motor and provide accurate protection.
Flexible customization:Through the FlexCurve(TM)overload curve customization function,users can customize according to the specific needs of the motor to improve the accuracy and reliability of protection.
Multiple protection functions:The relay provides multiple protection functions such as overload,overheating,ground fault,etc.to ensure the safe operation of the motor.
Easy maintenance:The relay provides functions such as event recording and motor health report,which helps users to find problems and perform maintenance in time.
