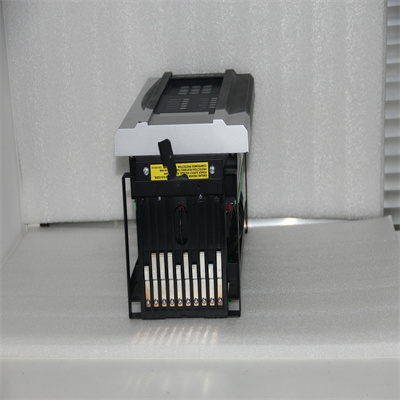

GE 369-HI-R-0-0-E-0-E

GE 369-HI-R-0-0-E-0-E(may have slight variations in actual applications,such as 369-HI-R-0-0-0-0-E,369-HI-R-0-0-0-0-E will be used as the reference for the following description)is a motor management relay produced by General Electric(GE),which is designed for the protection and monitoring of medium-sized AC motors and their ancillary equipment.The following is a detailed analysis of the product:

1.Product Overview

As part of the GE multi-line 369 series,the GE 369-HI-R-0-0-0-0-E is an adaptive system that can”learn”the needs of the motor and provide a variety of active protection measures to extend system life and reduce related costs.

2.Main functions

Monitoring and management:The relay can fully monitor the operating status of the motor,including key parameters such as current,voltage,power factor,etc.,to ensure that the motor operates under safe and efficient conditions.

Protection mechanism:Provides a variety of protection functions,such as overcurrent protection,overvoltage protection,undervoltage protection,etc.,to effectively prevent the motor from being damaged by various faults.

Event reporting and waveform capture:The relay has an event reporting function that can record abnormal conditions during motor operation and provide a waveform capture function so that technicians can accurately analyze faults.

Startup data recording:It can record the startup data of the motor,provide technicians with detailed information during the motor startup process,and help optimize the starting performance of the motor.

III.Technical specifications

Size:The width is about 11 cm,the height is about 30 cm,and the length is about 21 cm,which is easy to install on the control cabinet or operation panel.

Weight:The weight inside the box is 10 pounds,and the weight outside the box is about 8 pounds.The weight is moderate and easy to carry and install.

Port:The front end is equipped with an RS232 port for connecting to a computer running GE Multilin’s industry-leading software EnerVista 369 to achieve rapid modification of set points and remote monitoring.

IV.Enhanced options

GE 369-HI-R-0-0-0-0-E also provides an enhanced option(E),including the following functions:

Enhanced panel:With motor status indicator,it provides a more intuitive display of operating status.

Motor health report:Generates motor health reports regularly to help technicians understand the motor’s operating status and potential failure risks.

Enhanced learning data:Provides more accurate motor demand prediction and protection measures through more advanced learning algorithms.

Motor start data recorder:Provides more detailed motor start data recording function,which helps optimize the start process and improve motor efficiency.

Enhanced event recorder:Can record more types of events and fault information,providing more comprehensive data support for fault analysis and troubleshooting.
