FOXBORO FBM204

FOXBORO FBM204 is a high-performance process control module launched by Foxboro,a brand of Emerson Process Management.The following is a detailed introduction to FBM204:

1.Product Overview

FBM204 is a process control module that integrates multiple functions such as control,monitoring,and diagnosis.It is suitable for industrial fields such as petrochemical,power,water treatment,and pharmaceuticals.It uses advanced technology and design to provide users with an efficient,reliable,and flexible control solution.

2.Technical Specifications

Input/Output Channels:

Contains four 20mA DC analog input channels and four 20mA DC analog output channels.

Each input channel accepts analog sensor input,such as a 4 to 20mA transmitter or a self-powered 20mA signal source.

Each output channel drives an external load and generates a 0 to 20mA output.

The input/output is electrically isolated from other channels and ground.

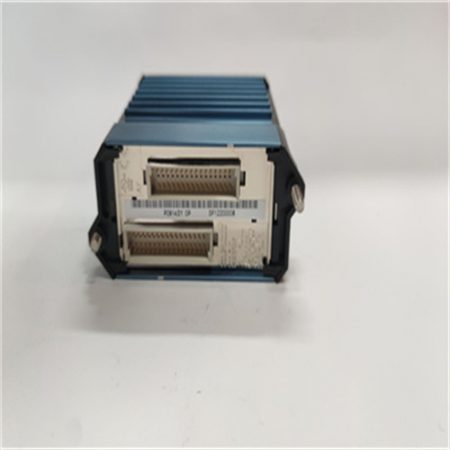

FOXBORO FBM204

Signal Conversion and Application Programs:

Perform signal conversion to connect the electrical input/output signals of field sensors to the optional redundant fieldbus.

Executes analog I/O applications with configurable options for conversion time,fail-safe configuration(hold/fallback),and analog output fail-safe fallback data(per channel).

High Accuracy:

Each channel achieves high accuracy through Sigma-Delta data conversion.

The module uses Sigma-Delta data conversion on each channel,providing a new analog input reading every 25 milliseconds and a configurable integration period to eliminate any process and/or noise and power line frequencies.

Hardware Design:

Features a rugged extruded aluminum housing to provide physical protection for the circuitry.

Chassis designed specifically for mounting the FBM in accordance with ISA standard S71.04 provide varying degrees of environmental protection up to harsh environments(G3 grade).

Communications and Connectivity:

The fieldbus communication module or control processor interfaces with the redundant 2Mbps modular fieldbus used by the FBM.

The FBM accepts communications from either path(A or B)of the 2Mbps fieldbus.If one path is unsuccessful or switched at the system level,the module continues to communicate over the active path.

Other parameters:

Processor type:high-performance 32-bit microprocessor,supports multi-tasking,ensures the real-time and accuracy of the control algorithm.

Memory:2MB user memory,supports program and data storage.

Power requirement:24VDC,low power consumption,meets industrial standards.

Operating temperature range:-40°C to 70°C(some materials mention the operating temperature range of-20°C to+50°C,but-40°C to 70°C is a wider operating temperature range,which may be applicable to different models or versions of FBM204).

Protection level:IP65,dustproof and waterproof,suitable for outdoor and harsh environment installation.

FOXBORO FBM204

III.Application field

FBM204 module is widely used in various industrial automation systems,such as control systems in petrochemical,electric power,water treatment,pharmaceutical and other industrial fields.It can realize precise control,monitoring and diagnosis of the production process,and improve production efficiency and quality.

IV.Product features and advantages

Highly integrated:It integrates multiple functions such as control,monitoring,diagnosis,etc.,and simplifies the system structure.

Flexible configuration:I/O points and communication protocols can be flexibly configured according to user needs to meet diverse needs.

Remote monitoring:Supports remote access and monitoring functions,allowing users to understand the operating status of the equipment at any time,improve operation and maintenance efficiency,and reduce maintenance costs.

Reliable and stable:Strict quality control and industrial-grade design are adopted to ensure long-term and stable operation of the equipment in harsh industrial environments.
