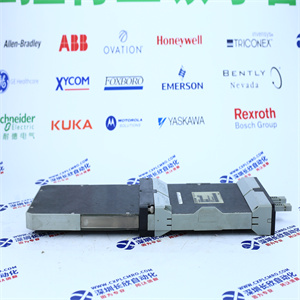

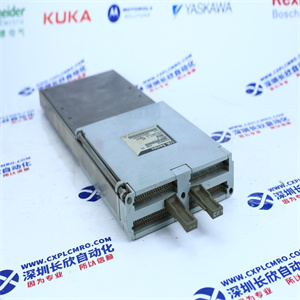

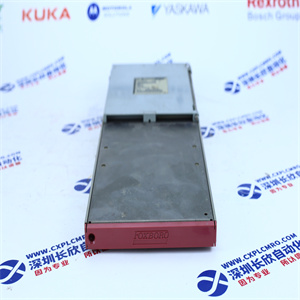

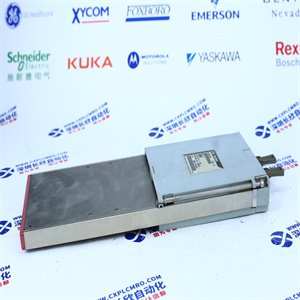

FOXBORO FBM12

FOXBORO FBM12

The Foxboro FBM12 is a Fieldbus Module (FBM) manufactured by Foxboro, a division of Schneider Electric. The FBM12 is designed for use in a distributed control system (DCS) and can communicate with field devices using the Fieldbus communication protocol.

The FBM12 module is compact in size and can be mounted on a Fieldbus remote I/O carrier or within a controller. It allows for the transfer of digital and analog signals between the DCS and field devices, such as sensors, actuators, and transmitters.

Key features of the FBM12 module include:

1. Fieldbus communication: The FBM12 supports the Fieldbus communication protocol, allowing for reliable and high-speed data exchange between the DCS and field devices.
2. Flexibility: The module offers flexibility in terms of signal types, accommodating a range of digital and analog input and output signals. This enables seamless integration with a variety of field devices.
3. Scalability: The FBM12 is scalable, allowing for easy expansion of the DCS system by adding additional modules as needed.
4. Easy configuration and diagnostics: The module is equipped with diagnostic capabilities, enabling easy troubleshooting and maintenance. Configuration can be done through software tools provided by Foxboro.
5. Robust construction: The FBM12 is designed to withstand harsh industrial environments. It is built with rugged components to ensure reliable operation even in demanding conditions.

Kulicke&Sofia K&S 01483-1039-000-05

Control techniques EN-204-00-000 P/N 960500-10 Rev:A1

Precision motion controls PMC VS-90

Tektronix WFM 601E WFM601E serial component monitor

Siemens PL EA SCA-B4-70-10 4-Q servo amplifier

Agilent router tester E7914A GbE/4

Fuji FRENIC-Multi FRN5.5E1S-2CP2

Ericsson CPU-D4 ROF 1575124/1 R10D/B TB9 0037

B&R BRITGR31 v1.4

Some of the key features and parameters of the FBM12 module include:

• Input type: 4-20mA DC
• Input range: 0-23mA DC
• Accuracy: ±0.1% of full scale
• Isolation: 1500V AC RMS between input and output
• Response time: < 100ms
• Power consumption: 1.5W
• Operating temperature range: -40°C to +85°C
• Storage temperature range: -40°C to +85°C
• Humidity range: 5% to 95% non-condensing
