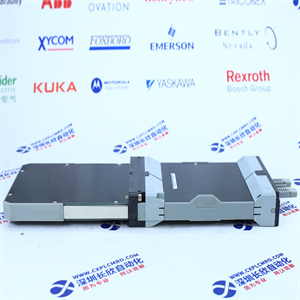

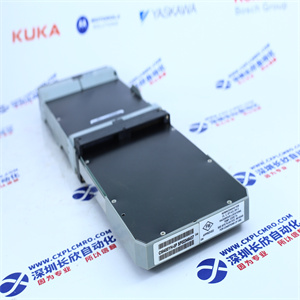

FOXBORO FBM07

FOXBORO FBM07

The FOXBORO FBM07 is a high-performance, single-channel, isolated, analog input module designed for use in the Foxboro I/A Series system. It is used to measure and monitor analog signals from various types of sensors, such as temperature, pressure, flow, and level sensors. The module provides high accuracy, stability, and reliability in harsh industrial environments. It features a 16-bit resolution, a sampling rate of up to 10 samples per second, and a wide range of input signal types, including voltage, current, resistance, and thermocouples. The module is hot-swappable, which means it can be replaced without shutting down the system, and it is also field-configurable, allowing for easy setup and calibration.

Agilent/HP E4970-66501-4396B,4395A A1 CPU Board

Agilent/HP E4970-66550-4396B DC-DC Converter Board

Tektronix TDS7404B Oscilloscope 4GHz 4 Ch 20GSa/s

Agilent HP 70001A MMS System Mainframe(4 available)

Agilent HP 41901A SMD PI-Network test Fixure

Agilent 70842B 3 Gb/s Error Detector Module w/warranty

Agilent HP 70904A RF Section 100

The Foxboro FBM07 is a Fieldbus module that is part of the Foxboro I/A series of distributed control systems. It provides communication and control capabilities for field devices in industrial automation applications.

Some of the key features and parameters of the Foxboro FBM07 include:

1. Communication Protocol: It supports the Fieldbus Foundation’s H1 protocol, which is used for digital communication between field devices and control systems.
2. Termination: The module is equipped with termination resistors, which are required for proper communication on the Fieldbus network.
3. Fieldbus Segment: The FBM07 can be used as a segment controller or a segment terminator. It provides power and communication for up to 31 field devices on a Fieldbus segment.
4. Power Supply: The module requires a 24 VDC power supply for operation.
5. Device Integration: It supports integration with various field devices, such as sensors, actuators, transmitters, and control valves. These devices can be connected to the module using Fieldbus Foundation-approved wiring and connectors.
6. Diagnostic Features: The FBM07 incorporates diagnostic capabilities for troubleshooting and monitoring field device status. It can provide information on device health, communication status, and process variables.
7. Configuration: The module can be configured through the Foxboro I/A Series engineering tools, such as Foxboro Configurator or Foxboro Control Configuration and Monitoring System (CCMS). The configuration includes device mapping, parameter setup, and communication settings.
