FOXBORO FBM04

FOXBORO FBM04

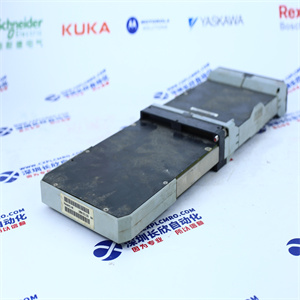

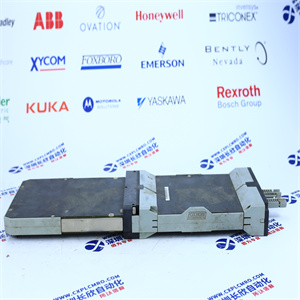

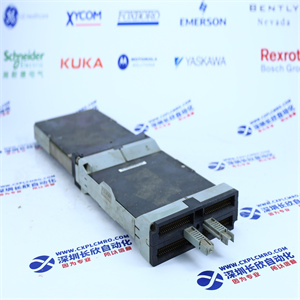

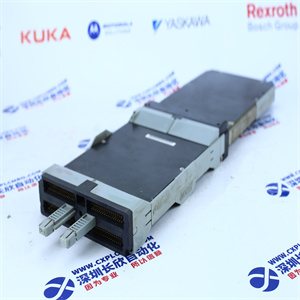

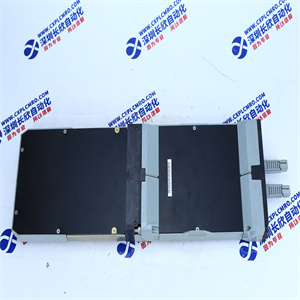

The Foxboro FBM04 is a fieldbus module, a 4-channel fieldbus input/output (I/O) module manufactured by Foxboro, a division of Schneider Electric.

The FBM04 module is designed to connect to a fieldbus network and provide control and monitoring capabilities for industrial processes. It has four channels, allowing for the connection of various field devices such as sensors, actuators, and other I/O signals.

The module supports multiple fieldbus protocols, including Foundation Fieldbus and PROFIBUS, making it compatible with a wide range of fieldbus systems.

Key features and specifications of the Foxboro FBM04 module include:

• 4 channels for field device connections
• Support for various fieldbus protocols (Foundation Fieldbus and PROFIBUS)
• Configurable I/O types (analog, digital, etc.)
• High-speed communication capability
• Redundancy options for increased reliability
• Diagnostics and fault detection capabilities
• Compact and modular design for easy installation and expansion

ICOM IC-M710 MF/HF Marine transceiver

Sew eurodrive MOVI-PLC DHE41B/UOH11B

Physik instrumente PI E661K005X E-661K005

Mitsubishi inverter FR-U120S-NO.75K-UF

YOKOGAWA FINESERV PC10020 AA00 POSITION CONTROLLER

Parker COMPAX-S CPX8541S/F4

Pack driver AK-BX551

Melles griot nanotrak NTS 17NTS001

The Foxboro FBM04 is a high-performance I/O module designed for use in the Foxboro I/A Series System. It offers a wide range of capabilities and features that make it ideal for various process control applications. Here are some key details about the product:

• Input/Output Capability: The FBM04 module provides four channels of analog input or output. It supports a variety of signal types, including analog current (4-20 mA), voltage (-10 to +10V), thermocouple (various types), and resistance.
• Accuracy and Resolution: The module offers high accuracy and resolution for precise measurement and control. It has a typical accuracy of 0.05% of full scale and a resolution of 16 bits.
• Signal Processing: The FBM04 includes advanced signal processing capabilities, such as filtering, linearization, and scaling. This allows for enhanced accuracy and easier integration with control systems.
• Communication: The module communicates with the Foxboro I/A Series System using the FoxCom protocol. It supports both peer-to-peer and multidrop configurations, providing flexibility in system architecture.
• Redundancy: The FBM04 incorporates redundancy features to ensure high availability and system reliability. It supports both hot swapping and cold swapping of modules, allowing for seamless replacement or addition of modules without system interruption.
• Diagnostics and Maintenance: The module includes built-in diagnostics and self-test features for easy troubleshooting and maintenance. It provides detailed diagnostic information and fault indication, making it easier to identify and resolve issues.
• Environmental Considerations: The FBM04 is designed to withstand harsh industrial environments. It operates within a temperature range of -40°C to +85°C (-40°F to +185°F) and has a high resistance to shock and vibration.
• Mounting and Power: The module can be easily installed in a standard Foxboro FBM rack or cabinet. It is powered by the I/A Series power supply, eliminating the need for additional power sources.
