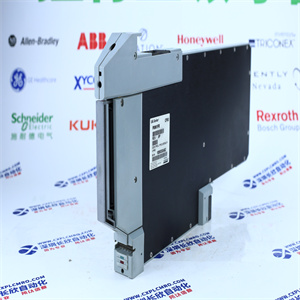

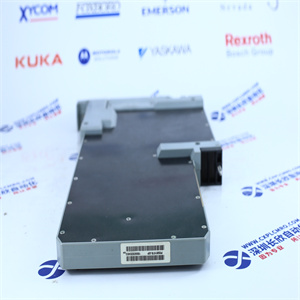

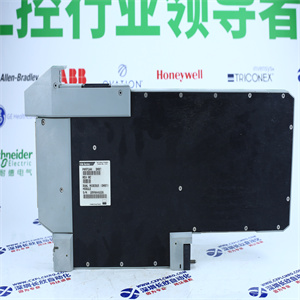

FOXBORO CP60

FOXBORO CP60

The Foxboro CP60 is a Process Automation Controller that is designed to provide advanced control, data acquisition, and communication capabilities for various industrial processes. It is a versatile and robust controller that can be used in a wide range of industries including oil and gas, power generation, water and wastewater, and manufacturing.

The CP60 offers a variety of features and functionalities including:

1. Powerful processing capabilities: The controller is equipped with a high-performance processor that enables fast and efficient execution of control strategies and algorithms.
2. Multiple communication options: It supports various communication protocols such as Modbus, EtherNet/IP, OPC, and PROFIBUS, allowing seamless integration with other devices and systems.
3. Flexible I/O options: The CP60 provides a wide range of I/O modules, allowing users to customize the controller based on their specific application requirements. It supports both analog and digital signals and can handle inputs from sensors, switches, and other field devices.
4. Advanced control algorithms: The controller offers advanced control algorithms such as PID (Proportional-Integral-Derivative) control, fuzzy logic control, and model predictive control, enabling precise and efficient process control.
5. Data logging and reporting capabilities: The CP60 can log process data at high sampling rates and has built-in data storage capabilities. It also has reporting features that enable users to generate detailed reports and analyze process data.
6. User-friendly interface: The controller is equipped with a color touchscreen interface that provides easy navigation and configuration. It also supports remote monitoring and configuration through a web browser or mobile devices.

ABB Taylor MOD 300 6230BP10720B-K Analog AC I/O Module

Used ABB Kent-Taylor Pressure Transmitter 554T

ABB Kent-Taylor Series TIP1 I/P Transducer TIP1CA300

ABB Kent Taylor Roll Chart 82S400***

Taylor ABB 6004BZ10300E Mod 300 CPU Board 6004BZ10300-E

TAYLOR ABB MOD 300 SIM MODULE 6010BZ10000

ABB Taylor MOD 300 6230BP10720C-M Analog AC I/O Module

Some of the key features and parameters of the Foxboro CP60 include:

• Input signals: The CP60 supports a wide range of input signals, including thermocouples, RTDs, mA, mV, V, and pulse signals.
• Output signals: The CP60 supports a variety of output signals, including mA, V, and pulse signals.
• Display: The CP60 features a large, easy-to-read display with a backlight for easy visibility in low-light conditions.
• Control modes: The CP60 supports a variety of control modes, including PID, ON/OFF, and manual control.
• Alarms: The CP60 supports up to four alarms, which can be configured as high/low or deviation alarms.
• Communications: The CP60 supports a variety of communication protocols, including Modbus RTU, Modbus TCP/IP, and Ethernet/IP.
• Power supply: The CP60 can be powered by either AC or DC power, and features a wide operating voltage range.
• Enclosure: The CP60 is housed in a rugged, NEMA 4X/IP66-rated enclosure, making it suitable for use in harsh industrial environments.
