F3 DIO 88 01(or F3 DIO 8/8 01,the specific numbering format may vary depending on different materials or contexts)is a digital input/output(DIO)module produced by HIMA.The following is a detailed introduction to the module:
1.Product Overview
The F3 DIO 88 01 module is part of the HIMA compact system series and is designed for industrial automation.It is usually used in conjunction with a programmable logic controller(PLC)for precise control and monitoring of industrial processes.The module provides 8 digital input channels and 8 digital output channels,capable of receiving and sending digital signals,thereby achieving precise control and monitoring of the status of industrial equipment.

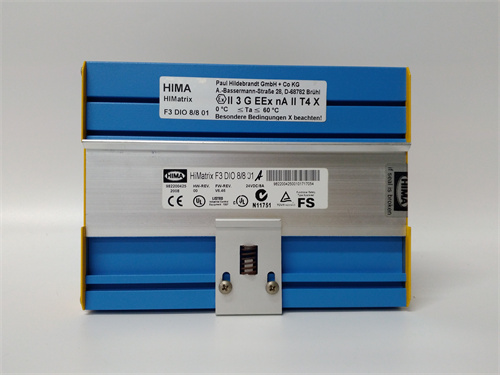

F3 DIO 88 01
2.Main features
Input and output functions:
8 digital input channels for receiving digital signals from sensors or other devices.
8 digital output channels for sending digital signals to control actuators or other devices.
Output channels may include DO+and DO-types and support bipolar connections,which increases flexibility of use.
Redundant system:
HIMA products usually provide redundant systems,which means that the system can continue to operate safely even if one component fails.This is critical for applications that require continuous operation,such as oil and gas production facilities.
Communication Protocol:
The module supports multiple communication standards such as the HART protocol,which is compatible with a variety of field devices,improving the flexibility and availability of the system.
Fault diagnosis and self-test:
The module has fault diagnosis and self-test functions,which can detect and report potential problems in a timely manner,helping to reduce downtime and maintenance costs.
Metal shell:
The F3 DIO 88 01 module adopts a metal shell design,which has good durability and anti-interference ability.
III.Application Scenario
Industrial Automation:
The F3 DIO 88 01 module is widely used in the field of industrial automation for controlling and monitoring production lines,factory equipment and processes.It can be used in conjunction with a variety of sensors,actuators and other equipment to realize automated production processes.
Oil and Gas Industry:
In the oil and gas industry,the module can be used to monitor and control facilities such as oil fields,refineries,and natural gas processing plants to ensure safe and efficient production operations.
Chemical Industry:
In the chemical process,the F3 DIO 88 01 module can be used to control chemical reactions,process parameters,safety systems,etc.to ensure the stability and safety of the production process.
Power Industry:
In power facilities such as power plants and substations,the module can be used to control generators,switchgear,transmission lines,etc.to monitor and control the power system.
F3 DIO 88 01
Manufacturing:
In the manufacturing industry,the F3 DIO 88 01 module can be applied to various production equipment,such as machine tools,welding robots,assembly lines,etc.,to achieve automation and optimization of the production process.
Process Safety:
The module can also be used in process safety systems,such as fire and toxic gas leak monitoring,emergency shutdown systems,etc.,to ensure safety in industrial processes.
4.Technical Specifications(Example)
(Please note that the following technical specifications may vary depending on the product version and manufacturer.Please refer to the product manual or information provided by the manufacturer for details.)
Input/output points:8 input channels,8 output channels
Communication protocol:Supports HART and other communication standards
Casing material:Metal
System type:Redundant system(possible)
Operating temperature:-20°C to 60°C(specific range may vary depending on the product)
Storage temperature:-40°C to 70°C(specific range may vary depending on the product)
Operating humidity:5%to 95%(non-condensing)
Power supply:AC 100V to 240V,50/60Hz(specific voltage and frequency range may vary depending on the product)
