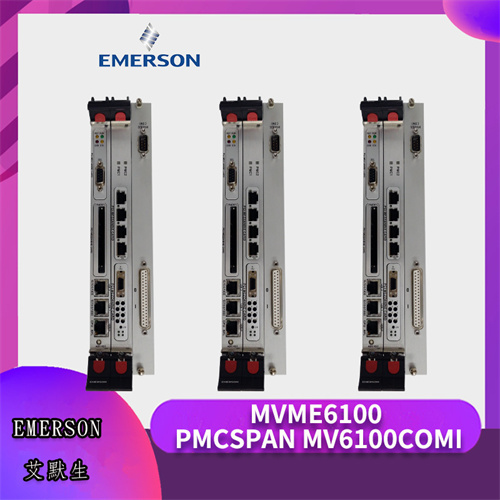

EMERSON MVME6100 is a single-board computer produced by Emerson.The following is a detailed introduction to the product:
1.Product Overview
MVME6100 is the first VME bus board designed with Tundra Tsi148 VME bus interface chip.It combines NXP MPC7457 PowerPC processor and AltiVec coprocessor to provide balanced processor,memory subsystem,local bus and I/O subsystem performance.The product supports 2eSST protocol and has an actual bandwidth of up to 320MB/s,which is very suitable for defense,aerospace,industrial automation and medical imaging.
2.Product Features
High-performance processor:MVME6100 is equipped with MPC7457 PowerPC processor running at up to 1.267GHz and 128-bit AltiVec coprocessor for parallel processing,which is very suitable for data-intensive applications.
High-speed VME bus:Adopts Tundra Tsi148 VME bus interface chip and supports 2eSST protocol,which enables VME bus to run at an actual bandwidth of 320MB per second in most cases,greatly improving the data transfer rate.
Rich memory and storage:MVME6100 provides up to 2GB of on-board DDR ECC memory and 128MB of flash memory to meet demanding application requirements.
Dual Gigabit Ethernet interface:Achieve high-performance network connection,convenient data exchange and communication with other devices.
Multiple I/O options:Through two 33/66/100 MHz PMC-X interfaces,industry-standard application-specific modules can be added to expand I/O functions.
Backward compatibility:MVME6100 can be used with existing VMEbus backplanes and boards to protect customers’investments in existing hardware and software.
III.Application fields
Defense and aerospace:MVME6100 is ideal for command and control applications using commercial-grade products,such as naval bunker systems,fixed ground systems,and reconnaissance aircraft systems.Its high-performance processor and high-speed VME bus provide higher performance and lower latency for these applications.
Industrial Automation:The high bus bandwidth and fast processing speed of the MVME6100 make it an ideal choice in semiconductor process equipment(SPE),automatic test equipment(ATE),and various other high-end industrial automation applications.
Medical Imaging:Medical imaging applications such as nuclear medicine(NM),positron emission tomography(PET),magnetic resonance imaging(MRI),X-ray,and computed tomography(CT)require intensive image processing,manipulation,and algorithm-intensive calculations.The high-speed processing capability and large memory of the MVME6100 support the needs of these applications.
4.Technical Specifications
Processor:MPC7457 PowerPC,clock frequency 1.267GHz
On-chip cache:L1 cache 32K/32K(I/D),L2 cache 512K,L3 cache 2MB NVRAM
Memory:Up to 2GB of onboard DDR ECC memory,128MB flash
VME bus:Supports 2eSST protocol,actual bandwidth up to 320MB/s
Network interface:Dual Gigabit Ethernet interface
I/O interface:Two 33/66/100 MHz PMC-X interfaces
Other features:Supports multiple operating systems,including real-time operating systems and Linux;Provides VxWorks board support package;Supports two jumper-configurable P2 I/O modes(PMC mode and IPMC mode)
5.Maintenance and Care
To ensure the stable operation of MVME6100 and extend its service life,the following maintenance and care are recommended:
Regularly check and clean the board to ensure that there is no dust and debris accumulation.
Avoid excessive vibration and impact on the board to avoid affecting its performance and life.
During use,pay attention to keep the board well cooled to avoid overheating and causing performance degradation or damage.
If the board is found to have a fault or abnormality,contact the supplier or after-sales service center for repair or replacement.
In summary,EMERSON MVME6100 is a high-performance,high-reliability single-board computer with a wide range of applications and significant product advantages.During purchase and use,users are advised to pay attention to the product’s technical specifications and performance parameters,as well as regular maintenance and care.
