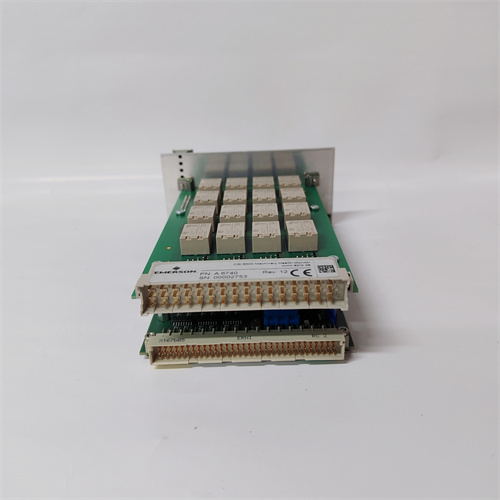

EMERSON A6740

EMERSON A6740 is a 16-channel output relay module produced by Emerson.The following is a detailed introduction to the product:

1.Product Overview

EMERSON A6740 is designed for high reliability of the most critical rotating machinery in the factory.When used with AMS 6500,it can form a complete API 670 machinery protection monitor.Its application range includes steam,gas,compressors and hydraulic turbine machinery.

EMERSON A6740

2.Main features

16-channel output:

The module has 16 relay outputs,and the clear,alarm or alarm signal of any channel can be selected as input.

Easy-to-use software:

Provides a graphical logic display to guide users through the configuration in a graphical way,making operation easier and more intuitive.

Meets API 670 standards:

The product meets the standards of API 670 machinery protection monitors,ensuring its reliability and accuracy in industrial applications.

Hot-swappable modules:

The module design supports hot swapping,which is convenient for users to replace and maintain modules without interrupting system operation.

Compact 3U size:

The 2-slot plug-in module reduces the cabinet space requirement by half compared to the traditional 6U card,which is more space-saving.

Multiple input types:

Supports up to 60 input types,including channel clear,alarm,danger and other signals.

Time delay function:

Each relay output can be configured with a time delay of 0~30 seconds to meet the needs of different application scenarios.

3.Technical specifications

Control voltage:13~32 VDC

Contact load:48 V,1 A,normally open or normally closed optional

Relay type:mechanical relay,in accordance with API 670 specifications

Logical expressions:Up to 30 logical expressions can be defined per module

Operating temperature:0°65°C(32°149°F)

Storage and transportation temperature:-40°70°C(-40°158°F)

EMERSON A6740

Relative humidity:5%~95%,non-condensing

Dimensions:PCB/EURO card format,in accordance with DIN 41494 standard,100 x 160 mm(3.937 x 6.300 inches),width 60 mm(2.362 inches)(12 TE),height 128.4 mm(5.055 inches)(3 HE),length 160 mm(6.300 inches)

Weight:Net weight about 320 grams(0.705 pounds),gross weight about 450 grams(0.992 pounds)

IV.Application fields

EMERSON A6740 is widely used in various industrial fields that require high-reliability mechanical protection monitoring,such as electricity,petroleum,chemical industry,metallurgy,etc.Its high precision,high stability and easy configuration make it an indispensable component in these fields.
