Product Description
The DS200DCFBG1BJB DC power board is manufactured by General Electric and used in the Mark V series turbine control system.
Features:
Has high reliability
Stable performance
DS200DCFBG1BJB is a circuit board component manufactured by General Electric as part of the Mark V Speedtronic system.DS200DCFBG1BJB is used to provide control level power supply for drives and cabinet fans.DS200DCFBG1BJB is used for EX2000 applications as well as DC2000,FC2000,GF2000,ME2000,CB2000,and AC2000 IGBT driver applications.

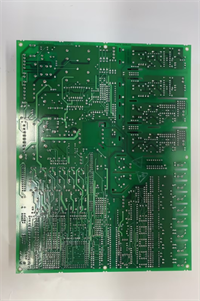

DS200DCFBG1BJB is a large rectangular circuit board with a large number of components installed on its surface.This includes seven 4-bit DIP switching devices and twelve configurable jumpers.Six DIP switches are located on one side of the circuit board together.They are used to scale or change many different inputs.For example,switch 4(SW4)is used to scale the voltage applied to the VCO output bridge circuit.The board also has a neon light to indicate that the fuse in the 115 VAC circuit is blown;And two LED indicator lights,used to indicate that the fuse in the+24 VDC line and-24 VDC line is blown.
Other board components include test points,I/O connectors(1PL-1 to 1PL-40,2PL-1 to 2PL-9,4PL-1 to 4PL-5,and 5PL-1 to 5PL-26),as well as fuses,integrated circuits,resistor networks,resistors,capacitors,transistors,heat sinks,transformers,and relays.The test points on this board are used to check the voltage signal.Fuses provide protection.
application area
The DS200DCFBG1BJB GE DC power supply board is widely used in fields such as power plants,power transmission systems,power distribution systems,and industrial automation.
