Bently Nevada 3500/22M

Status: In Stock

echnical features

High-precision data acquisition:Capable of recording high-resolution transient data,providing strong support for analyzing the operating status of mechanical equipment and diagnosing potential problems.

Real-time data transmission:Fast and stable data transmission is achieved through Ethernet links,ensuring that remote monitoring and analysis systems can obtain the latest equipment status information in a timely manner.

Flexible data processing architecture:It can adapt to different monitoring needs,from daily equipment status monitoring to sudden fault diagnosis.

The Bently Nevada 3500/22M is a transient data interface(TDI)module produced by Bently Nevada(now part of GE Detection&Measurement).The following is a detailed introduction to the Bently Nevada 3500/22M:

I.Product Overview

The Bently Nevada 3500/22M TDI module is a device designed for industrial monitoring and belongs to the 3500 series of products produced by Bently Nevada.It is mainly used for data exchange between the 3500 monitoring system and compatible software(such as System 1 Condition Monitoring and Diagnostic Software and 3500 System Configuration Software).

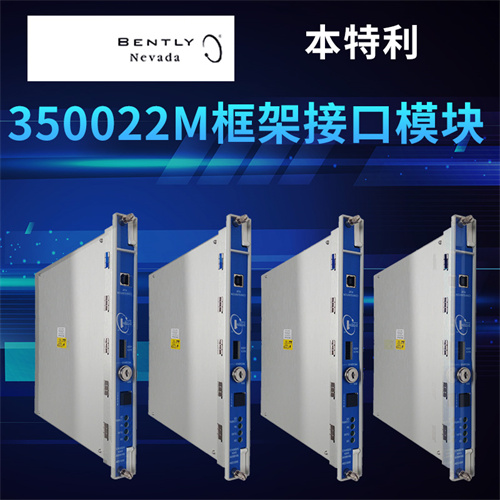

Bently Nevada 3500/22M插图

Bently Nevada 3500/22M

II.Main Functions

Data Acquisition:

The TDI module is capable of continuously collecting steady-state and transient dynamic(waveform)data.

It has traditional static data collection capabilities,while also being able to record dynamic,high-resolution transient data using an optional channel enable disk.

Data Transmission:

The TDI module transmits data to the host software via an Ethernet link for remote monitoring and analysis.

It supports Ethernet data transmission speeds up to 10/100Mbps,ensuring real-time and stability of data.

System compatibility:

The TDI module works seamlessly with M-series monitors such as 3500/40M,3500/42M.

It is also compatible with a variety of mainstream industrial control systems and asset management software,such as System 1 machinery management software.

III.Application scenarios

The Bently Nevada 3500/22M TDI module is suitable for a variety of industrial monitoring scenarios,including but not limited to:

Rotating equipment monitoring:It can provide key data for monitoring and diagnosis of various rotating equipment.

Mechanical protection:By continuously collecting steady-state and transient dynamic data,it helps to implement effective mechanical protection measures to prevent failures and unexpected downtime.

Asset condition monitoring:Provides detailed information on the health of machinery,helping maintenance teams to perform predictive maintenance and optimize asset performance.

Vibration analysis:Capable of capturing vibration signals and further analyzing them to identify problems such as mechanical fatigue,imbalance or bearing damage.

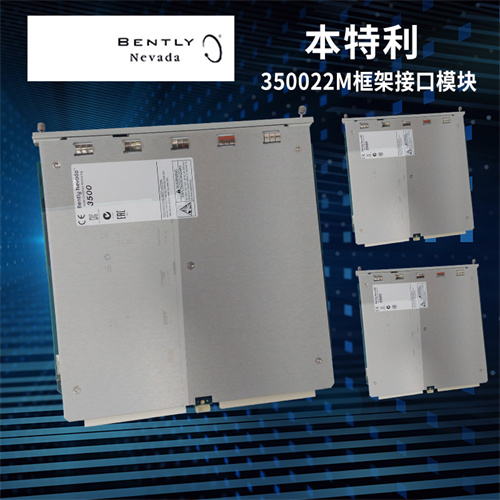

Bently Nevada 3500/22M插图1

Bently Nevada 3500/22M

IV.Technical features

High-precision data acquisition:Capable of recording high-resolution transient data,providing strong support for analyzing the operating status of mechanical equipment and diagnosing potential problems.

Real-time data transmission:Fast and stable data transmission is achieved through Ethernet links,ensuring that remote monitoring and analysis systems can obtain the latest equipment status information in a timely manner.

Flexible data processing architecture:It can adapt to different monitoring needs,from daily equipment status monitoring to sudden fault diagnosis.

V.Installation and configuration

Installation location:In the 3500 rack system,the Bently Nevada 3500/22M TDI module is usually installed in the second slot(near the power supply).

Configuration method:It can be configured using the 3500 system configuration software to meet specific monitoring needs.

In summary,the Bently Nevada 3500/22M TDI module is a very important component in industrial automation and mechanical equipment monitoring.It helps enterprises achieve efficient and reliable equipment operation and maintenance by providing accurate and real-time data.
