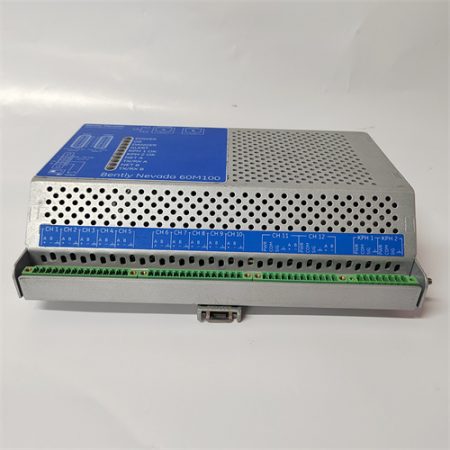

BENTLY 60M100-00

BENTLY(Bently Nevada)60M100-00 is a powerful automation control module or monitor module.The following is a detailed introduction to the module:

I.Main functions and features

High-precision vibration monitoring:

The module has high-precision vibration measurement capabilities and can monitor parameters such as vibration velocity,acceleration and displacement of the equipment in real time.

Through accurate vibration data acquisition,users can timely understand the health status of the equipment,predict possible failures,and take corresponding maintenance measures.

Real-time fault diagnosis:

The 60M100-00 module has a fault diagnosis function.By collecting and analyzing vibration data,it can identify and diagnose mechanical faults such as bearing wear,imbalance,looseness and other problems.

This helps to detect potential faults early,avoid equipment damage and production interruptions,and improve equipment reliability and operating efficiency.

High-speed data acquisition:

The module has high-speed data acquisition capabilities,which can achieve fast and accurate data acquisition.

It supports high-speed sampling rates and wide bandwidths,and is suitable for real-time monitoring and analysis of rapidly changing signals.

Multi-channel data acquisition:

The 60M100-00 module supports multi-channel data acquisition and can collect multiple independent signal channels at the same time.

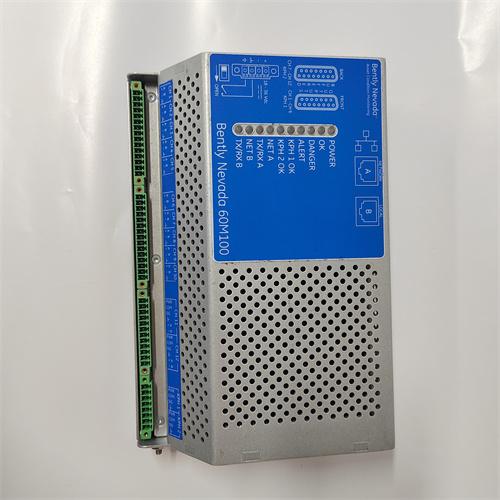

BENTLY 60M100-00

Each channel has an independent sampling circuit and parameter configuration,and can perform data acquisition operations independently.

High resolution and high precision:

The module has high-resolution and high-precision data acquisition performance,which can achieve accurate data measurement and analysis.

It uses high-quality ADC(analog-to-digital converter)and signal processing technology to provide stable and accurate acquisition results.

Flexible triggering and synchronization functions:

The 60M100-00 module has flexible triggering and synchronization functions,which can be configured according to user needs.

It supports a variety of trigger sources and trigger modes to achieve accurate triggering and synchronization operations.

Powerful signal processing capabilities:

The module uses advanced signal processing algorithms to filter,reduce noise and extract features on the collected vibration signals to improve signal quality and the accuracy of fault diagnosis.

At the same time,it also supports a variety of signal conditioning functions such as filtering,amplification and calibration to meet the needs of different equipment and application scenarios.

Real-time signal processing and analysis:

This module has real-time signal processing and analysis functions,which can process and analyze the collected data in real time.

It provides a wealth of signal processing algorithms and tools to facilitate users to perform real-time data processing and analysis operations.

Multiple interfaces and communication protocols:

The 60M100-00 module provides a variety of interfaces and communication protocols for connecting and communicating with other devices and systems.

It supports common interfaces such as PCI,Ethernet,etc.,and provides corresponding software interfaces and development tools.

High-speed data transmission and processing:

This module supports high-speed data transmission and processing,and can achieve efficient data exchange with other PXI modules and devices.

It is also integrated with NI’s software platform to provide comprehensive test,measurement and automation functions.

PXI bus compatibility:

This module uses the PXI bus interface and is compatible with other modules and devices on the PXI platform,making it easy to build complex test and measurement systems.

II.Application areas

BENTLY 60M100-00 modules are widely used in industrial equipment monitoring and fault diagnosis in wind turbines,turbines,petrochemicals,power and other industries.It can be used not only as a standalone condition monitoring system,but also as part of machine integration,integrated with the OEM’s control and instrumentation package.

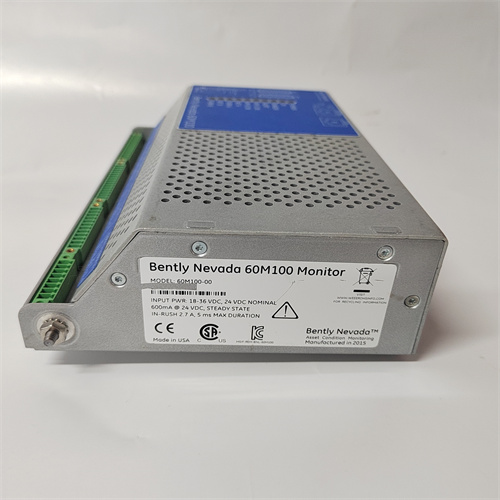

BENTLY 60M100-00

III.Technical Specifications(Partial)

Input Power:Minimum 18 V DC,Maximum 36 V DC.

Current:Maximum 1.7 A;Surge Current:Maximum 2.7 A(less than 5 ms).

Input Dynamic Range:110 dB fs=102.4 ksps.

Signal-to-Noise Ratio:110 dB fs=102.4 ksps.

A/D Conversion:Σ-Δ24-bit nominal.

Bandwidth:0 to 40 kHz.

Operating Temperature Range:-40°C to+70°C(-40°F to 158°F).

Storage Temperature Range:-45°C to+85°C(-49°F to 185°F).

Relative Humidity:0%to 95%(non-condensing).
