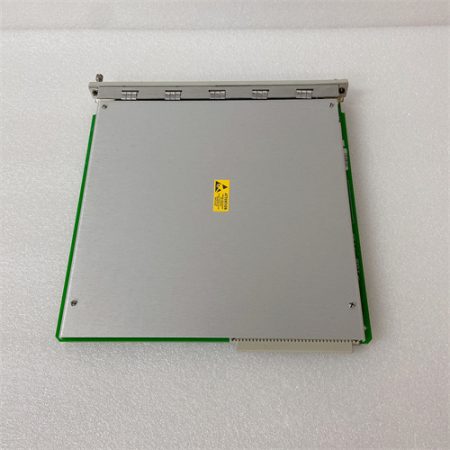

BENTLY 3500 32 125712-01

BENTLY 3500/32 125712-01 is a 4-channel relay module manufactured by Bently Nevada.The following is a detailed introduction to the module:

1.Basic information

Manufacturer:Bently Nevada

Model:3500/32 125712-01

Type:4-channel relay module

2.Technical specifications and features

Number of channels:

This module has 4 independent relay output channels,which can control multiple devices or systems at the same time.

Relay type and configuration:

The relay type is two single-pole double-throw(SPDT)relays connected together to form a double-pole double-throw(DPDT)form.

Each channel can be selected by a switch to be normally de-energized or normally energized.

Output and performance:

Four relay outputs are provided,and each output can be individually configured to meet the required voting logic.

BENTLY 3500 32 125712-01

The sealing form is epoxy resin sealing,and the contact life is up to 100,000 times 5A,24Vdc or 120Vdc.

Working Environment:

Operating temperature range:-30 degrees Celsius to+65 degrees Celsius.

Storage temperature range:-40 degrees Celsius to+85 degrees Celsius.

Humidity:95%,non-condensing.

Indicators and Communication:

OK LED:Lights up when the module is working properly.

TX/RX LED:Indicates sending and receiving,flashing means the module is communicating normally with other modules in the rack.

When the relay channel is in alarm state,the CH ALARM LED will light up.

Electrical Isolation and Compatibility:

All interfaces are electrically isolated,which improves the safety and stability of the system.

Supports multiple communication protocols and standards,such as Modbus,Profinet,etc.,which is convenient for integration with other devices and systems.

Advanced Functions and Diagnostics:

The module is equipped with a series of sensors and diagnostic functions to detect the operating status of the system in real time.

Promptly discovering and handling potential problems can help improve system reliability and reduce downtime.

BENTLY 3500 32 125712-01

3.Application fields

BENTLY 3500/32 125712-01 modules are widely used in various industrial automation systems,such as power generation,chemical industry,petroleum,water treatment and other fields.In these fields,the module can achieve precise control of various equipment or systems,improve production efficiency and reduce production costs.At the same time,its excellent electrical isolation performance and stability also ensure that the system can operate stably in various harsh environments.
