BENTLY 3500/22M

BENTLY 3500/22M is a transient data interface(TDI)module.Here is a detailed introduction to it:

I.Basic Overview

The BENTLY 3500/22M module is produced by BENTLY Nevada(now part of GE Detection&Measurement)in the United States.It is mainly used to interface with software compatible with the 3500 monitoring system(including System 1 status monitoring and diagnostic software and 3500 system configuration software).The module combines the functions of the 3500/20 rack interface module(RIM)and the data collection function of a communication processor(such as TDXnet).It can continuously collect steady-state and transient dynamic(waveform)data and transmit this data to the host software via an Ethernet link for remote monitoring and analysis.

II.Main Features

Powerful data processing capabilities:BENTLY 3500/22M is equipped with a high-performance processor and memory,which can handle large amounts of data and complex control algorithms,improving control accuracy and response speed.

Rich communication interfaces:The module supports a variety of different communication interfaces,such as Ethernet,serial port,CAN bus,etc.,which can easily communicate and control with various devices.

Flexible programming methods:BENTLY 3500/22M supports a variety of programming languages​​and development environments,such as C++,Java,Python,etc.,which is convenient for users to customize and develop.

High reliability and long life:The module adopts high-quality materials and design,has the characteristics of high reliability and long life,and can meet the high requirements of reliability and stability in the field of industrial automation.

Easy to operate and maintain:BENTLY 3500/22M is equipped with a friendly operation interface and menu design,which is convenient for users to monitor and adjust.At the same time,the module also supports remote maintenance and diagnosis functions,which can facilitate troubleshooting and maintenance.

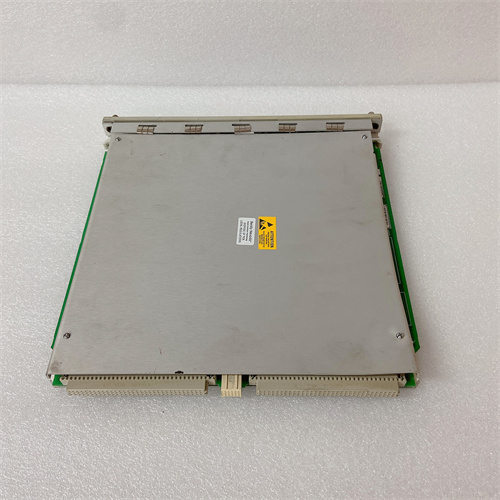

BENTLY 3500/22M

III.Application fields

BENTLY 3500/22M modules are widely used in various production processes that require high-precision,real-time monitoring and control,such as power,petrochemical,manufacturing and other fields.Specifically,it can be used in the following aspects:

Vibration monitoring:used to monitor the vibration of industrial equipment(such as engines,pumps,fans),predict the health of equipment,and prevent equipment failure.

Mechanical equipment health monitoring:By monitoring the transient data of mechanical equipment,evaluate the working status of the equipment,promptly discover and solve potential problems,and improve the reliability and life of the equipment.

Transient event recording:Recording and analyzing transient events that occur in the equipment,such as sudden voltage changes,shocks or other unusual working conditions,helps to understand unusual conditions during equipment operation and fault diagnosis.

Power system monitoring:Monitor parameters such as current,voltage and frequency in the power system to ensure the stable operation of the power system.

Factory automation:integrated into the factory automation system,real-time monitoring of the operating status of production equipment,and improve production efficiency and quality.

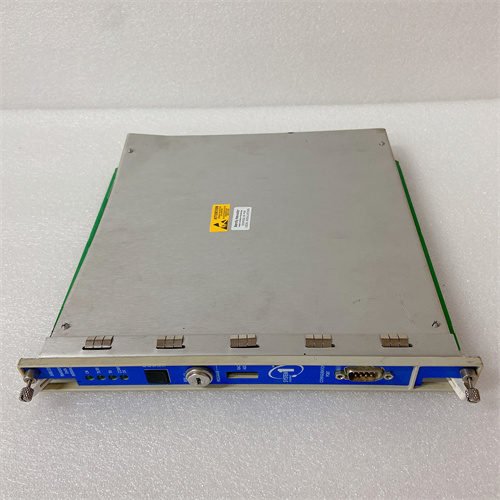

BENTLY 3500/22M

IV.Technical specifications

The technical specifications of the BENTLY 3500/22M module include but are not limited to the following aspects:

Support multiple event inputs per speed:maximum 20kHz.

Waveform sampling:Collect waveform data of 48 channels,support DC coupled waveform data,user-configurable synchronous waveform data sampling frequency up to-1024 sampling points/turn×2 turns,etc.,asynchronous data sampling supports 800 line spectrum in the following bandwidths,such as-10Hz to-20kHz,etc.

Communication protocol:Support BN host computer protocol,Ethernet TCP/IP form,etc.,can communicate with 3500 configuration software and 3500 data acquisition and display software.

Environmental restrictions:operating temperature is-30℃to+65℃,storage temperature is-40℃to+85℃,humidity is 95%(non-condensing).

Electromagnetic compatibility indicators:Meet multiple electromagnetic compatibility standards and certifications.
