BENTLY 3500/22M 288055-01

BENTLY 3500/22M 288055-01 is a monitoring and protection module produced by Bently Nevada.The following is a detailed introduction to the product:

1.Product Overview

The BENTLY 3500/22M 288055-01 module is a 3500 series transient data interface module(TDI)from Bently Nevada,used for vibration monitoring and mechanical fault diagnosis of industrial equipment.It plays a key role as the interface between the 3500 monitoring system and compatible software.

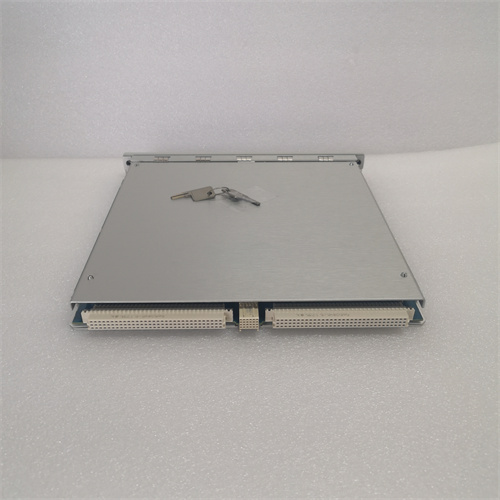

BENTLY 3500/22M 288055-01

2.Technical Features

High-precision vibration monitoring:

The module has a high-precision vibration monitoring function and can monitor the vibration of the equipment in real time,including parameters such as vibration velocity,acceleration and displacement.

Fault diagnosis capability:

By collecting and analyzing vibration data,the module can identify and diagnose mechanical faults such as bearing wear,imbalance,looseness,etc.,and issue alarms or trigger maintenance operations in time.

High reliability and stability:

The module has high reliability and stability,suitable for long-term operation in industrial environments,and can effectively monitor and protect the operating status of key equipment.

Flexible configuration:

The module usually provides a variety of configuration options,which can be customized according to specific application requirements,including the number of input channels,sampling rate,alarm settings,etc.

Rich communication interfaces:

The module usually has a variety of communication interfaces,such as Ethernet and fiber-optic Ethernet interfaces,which support data interaction and integration with other monitoring systems or control systems.

Scalability:

The module supports modular design and can be combined with other Bently Nevada monitoring modules to build a more comprehensive monitoring system.

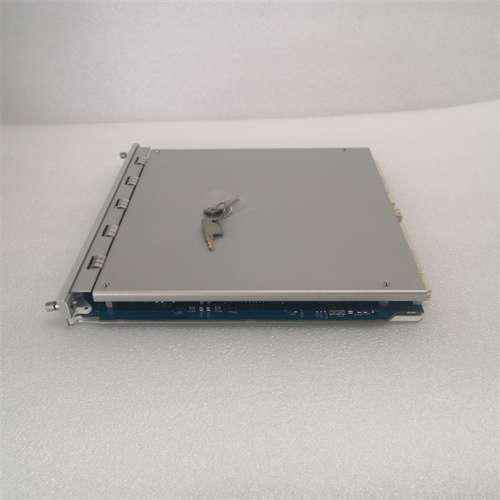

BENTLY 3500/22M 288055-01

III.Physical characteristics

Dimensions:138x 138x 25mm(length x width x height)

Weight:According to different materials,there are two possible weights,0.5kg and 1.2kg(actual weight may vary depending on production batches and specific configurations).

Color:Usually blue(specific color may vary depending on production batches).

IV.Application fields

BENTLY 3500/22M 288055-01 modules are widely used in various industrial fields,including:

Power industry:used to monitor the vibration of generators,turbines,pumps and fans.

Oil and gas industry:for monitoring vibrations in compressors,pumps and pipelines.

Chemical industry:for monitoring vibrations in pumps,compressors and mixers.

Manufacturing industry:for monitoring vibrations in machine tools,robots and conveyors.
