ABB-YPK112A-3ASD573001A13

ABB-YPK112A-3ASD573001A13 is an advanced product produced by ABB.The following is a detailed introduction to the product:

1.Product Overview

ABB-YPK112A-3ASD573001A13 is a multifunctional module integrating communication and excitation control.It is widely used in industrial automation,electric traction systems and single-axis or multi-axis position control of servo motors.It integrates ABB’s advanced achievements in power electronics,automation control and communication technology,providing users with efficient,reliable and easy-to-use solutions.

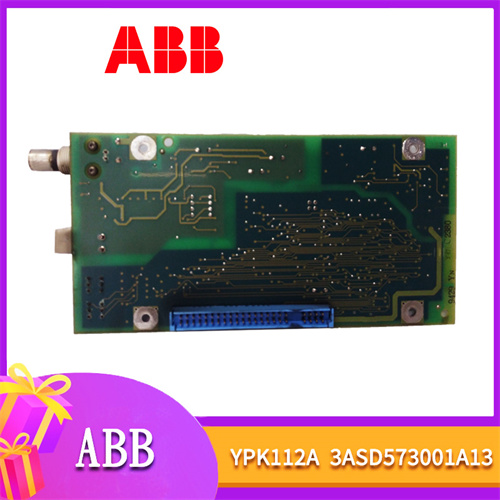

ABB-YPK112A-3ASD573001A13

2.Main features

Multiple communication interfaces:

The module provides multiple communication interfaces such as CANopen and Modbus,which can be seamlessly connected with different control systems to achieve data transmission and exchange.

Modular design:

The modular design makes installation and maintenance more convenient.Users can flexibly configure and expand communication modules according to actual needs.

High reliability:

Industrial-grade components are used to ensure stable operation in harsh environments.After rigorous testing and verification,the module has the characteristics of high reliability and long life.

Strong compatibility:

Compatible with a variety of ABB drive models,can be easily integrated into the ABB automation system.

Remote monitoring and fault diagnosis:

Through the communication interface,the drive can be remotely monitored,parameterized and fault diagnosed to improve the maintainability and reliability of the system.

Powerful data processing capabilities:

Equipped with a 32-bit RISC processor with a clock frequency of 100MHz,a memory of 128MB and a flash memory of 256MB,it has powerful data processing and communication capabilities.

Wide range of operating temperature:

The operating temperature range is-25°C to+60°C,adapting to various harsh environments.

3.Application areas

Industrial automation:

Widely used in various industrial automation systems,such as machine tools,packaging machinery,cranes,etc.,to achieve data communication and control between equipment.

Electric traction system:

In the single-axis or multi-axis position control of the electric traction system or servo motor,the module can support closed-loop control functions such as PID control.

Power plants and substations:

The rotating thyristor excitation system can be used to adjust and control the excitation current of the generator to ensure the stability of the generator and the regulation of the output power.In substations,it can be used to control the excitation process of transformers to regulate the voltage and power transmission of the power grid.

Railway and rail transit:

Rotating thyristor excitation systems are used in railway and rail transit systems to control the excitation process of electric trains to ensure smooth acceleration and braking performance.

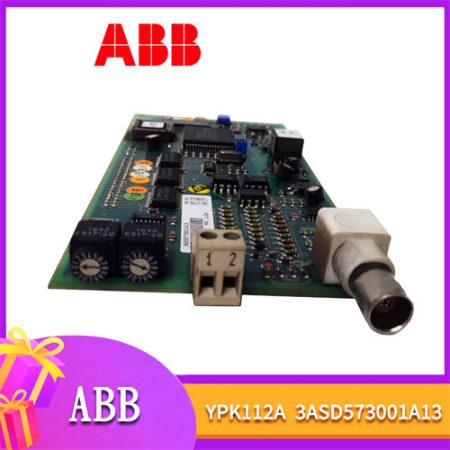

ABB-YPK112A-3ASD573001A13

4.Product specifications and parameters

Brand:ABB

Model:YPK112A 3ASD573001A13

Processor:32-bit RISC processor

Clock frequency:100MHz

Memory:128MB

Flash memory:256MB

Communication interface:RS-232/485,Ethernet,CANopen,Modbus,etc.

Input/output interface:analog input/output,digital input/output

Working voltage:usually 24Vdc/120Vac(the specific voltage range may vary depending on the product batch or application scenario)

Working temperature:-25°C to+60°C

Storage temperature:-40°C to+85°C

Relative humidity:5%to 95%(non-condensing)

Protection level:IP65

Product specifications:300mm x 200mm x 100mm

5.Precautions

Before installation and use,please read and understand the technical documents and safety guidelines provided by the manufacturer in detail.

Ensure that the module is installed within the recommended temperature and humidity ranges,and avoid direct contact with water,oil,dust,or electromagnetic interference.

Use a stable power supply to avoid voltage fluctuations that may damage the module.

Connect the signal line correctly to ensure the accuracy and stability of signal transmission.

Correctly configure the module’s software parameters according to system requirements to ensure compatibility with other parts of the control system.

Perform regular maintenance and inspection of the module,including cleaning and checking the contact status of the connector.

In summary,ABB-YPK112A-3ASD573001A13 is a powerful,stable,safe and reliable product suitable for various industrial automation,electric traction systems,and servo motor control fields.
