ABB-UNITROL-1010-3BHE035301R1002-UNS0121A-Z,V1 is an excitation system control unit launched by ABB.The following is a detailed introduction to the product:
1.Product Overview
ABB-UNITROL-1010 is a voltage regulator designed for small and medium-sized synchronous generators and industrial machines in the UNITROL 1000 series.It is based on advanced microprocessor technology and IGBT semiconductor devices,and can support continuous operating current output up to 10ADC.The product has the characteristics of high performance,flexibility,easy maintenance,high integration,and complies with international and industry standards.

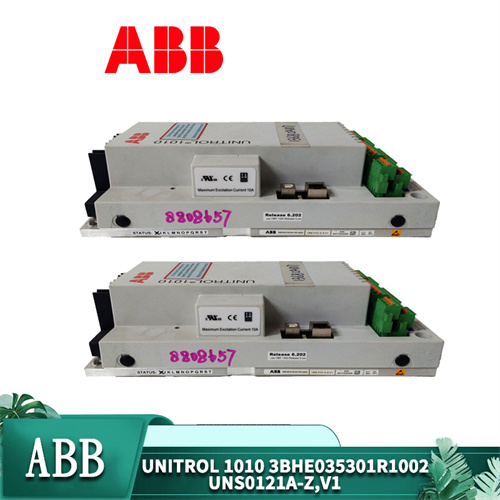

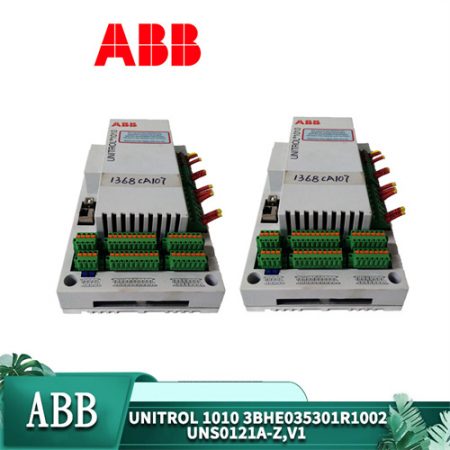

ABB-UNITROL-1010-3BHE035301R1002-UNS0121A-Z,V1
2.Main Features
Advanced microprocessor technology:
Adopting advanced microprocessors as the core control unit,it provides fast data processing capabilities and precise control accuracy.
IGBT semiconductor devices:
Using IGBT semiconductor devices as power output elements,it has the advantages of high efficiency,low loss and long life.
Dual channel support:
Built-in support for dual channels can be used for advanced load distribution in parallel running units.
Rotating diode monitoring:
Provides rotating diode monitoring function to ensure stable operation of the excitation system.
Automatic synchronization and multiple communication options:
With automatic synchronization function,it can easily achieve synchronous operation with the generator set.At the same time,it provides a variety of integrated communication options to facilitate data exchange with other equipment and systems.
High-performance operation:
It can provide high performance under harsh conditions and different temperature ranges,fully complying with DNV and UL standards.
Easy to maintain and expand:
Designed as a miniaturized device,it shares the same interface and size with UNITROL 1020,which is convenient for users to install,maintain and replace.At the same time,it can be configured and upgraded according to actual needs to improve the flexibility and scalability of the system.
3.Application areas
ABB-UNITROL-1010 is widely used in various power generation and non-power generation applications,including but not limited to:
Power plants:land-based power plants based on diesel or gas engines,gas or steam turbines and hydro turbines.
Marine electric propulsion:used for electric propulsion and auxiliary supply systems of ships.
Diesel-electric locomotives:provide excitation control for diesel-electric locomotives.
Wind power generation:suitable for excitation control of wind power generation systems.
Synchronous motor and variable speed applications:Provides precise excitation control for synchronous motor and variable speed applications.
4.Technical specifications
Model:ABB-UNITROL-1010-3BHE035301R1002-UNS0121A-Z,V1
Continuous operating current output:Up to 10ADC
Compliant standards:DNV and UL standards
Dimensions and interface:Shares the same interface and dimensions as UNITROL 1020
Other features:high performance,flexibility,easy maintenance,high integration,etc.

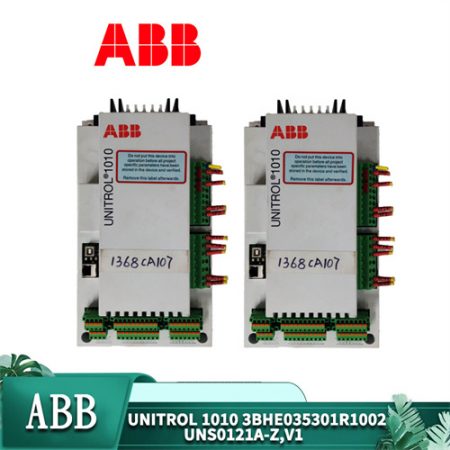

ABB-UNITROL-1010-3BHE035301R1002-UNS0121A-Z,V1
5.Precautions
When using ABB-UNITROL-1010,please ensure correct installation and wiring to avoid short circuit and overload.
Regularly maintain and inspect the excitation system to ensure its normal operation and extend its service life.
When programming and configuring,please strictly follow the relevant regulations and guidelines of ABB to avoid equipment failure or damage due to improper operation.
In summary,ABB-UNITROL-1010-3BHE035301R1002-UNS0121A-Z,V1 is a powerful,stable,safe and reliable excitation system control unit,which is widely used in various power generation and non-power generation applications.
