ABB UNITROL 1010

ABB UNITROL 1010

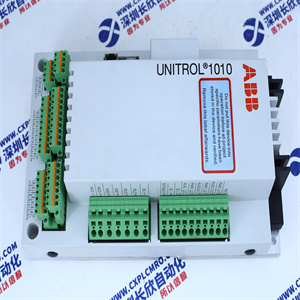

The ABB UNITROL 1010 is a digital automatic voltage regulator (AVR) designed for use in synchronous generators and motors. It is used to regulate the output voltage of the generator or motor by adjusting the excitation current of the field winding. The UNITROL 1010 is a microprocessor-based device that provides precise and stable voltage regulation, even under varying load conditions. It features advanced control algorithms and protection functions, including overvoltage and undervoltage protection, overexcitation protection, and loss of excitation protection. The UNITROL 1010 is easy to install and operate, and it can be configured using a PC or a handheld device. It is suitable for a wide range of applications, including power generation, oil and gas, marine, and industrial processes.

Micom Voice Mux 5000V-XSL Enhanced FXS Voice Module

Murata SAW Duplexers/Filte​r GIGAFIL SAF 38.0 MZ80Z-TF01

SW-475TR M/A-Com SPDT High Isolation Switch,0.5-3.0Ghz

FANUC POWER SUPPLY A06B-6081-H101 A06B608H101

Fanuc Servo Amplifier A06B-6079-H301 A06B6079H301

Fanuc Power Faliure Backup A06B-6077-h002 A06B6077H002

Fanuc Servo Amplifier A06B-6079-H291 A06B6079H291

OptiScan D-2X TACTICAL INSPECTOR Fiber Optic Visual Ins

The UNITROL 1010 excitation system offers advanced features and parameters to optimize generator performance and improve power system efficiency. Some of the key content information and parameters of the UNITROL 1010 are as follows:

1. Voltage Control: The excitation system enables precise control over generator voltage, ensuring stable operation and voltage regulation within tight limits.
2. Reactive Power Control: The UNITROL 1010 provides excellent reactive power control capability, allowing for quick response to load changes and maintaining the desired power factor.
3. Automatic Voltage Regulation (AVR): The AVR function regulates the generator’s output voltage and adjusts the excitation system accordingly to ensure consistent voltage levels.
4. Self-Excitation: The UNITROL 1010 supports self-excitation mode, allowing the generator to start and build voltage without requiring an external power source.
5. Fast Response Time: The excitation system features a fast response time, enabling it to rapidly adjust the excitation current to meet sudden load variations and voltage disturbances.
6. Wide Range of Input and Output Signals: The UNITROL 1010 can handle various input and output signals, such as control signals from an automatic voltage regulator (AVR), generator voltage and current measurements, and communication with the power management system.
7. Protective Features: The excitation system includes various protective features to prevent generator damage, such as overvoltage and overcurrent protection, loss of field protection, and underfrequency protection.
8. Multiple Control Modes: The UNITROL 1010 offers multiple control modes, including manual control, automatic control, and remote control options, allowing for flexible and customized operation.
9. Communication and Connectivity: The UNITROL 1010 supports various communication protocols, such as Modbus and IEC 61850, enabling seamless integration with other power system devices and control systems.
10. User-Friendly Interface: The excitation system is equipped with a user-friendly interface, providing operators with a clear visualization of key parameters, alarms, and system status for efficient monitoring and control.
