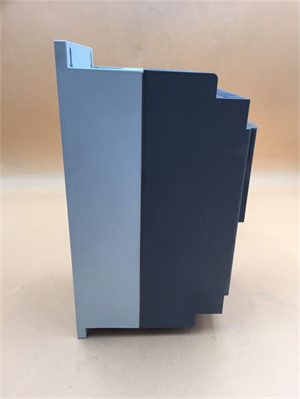

ABB PSTX570-600-70 is a soft starter.The following is a detailed introduction to the product:
1.Basic characteristics
Brand:ABB
Model:PSTX570-600-70
Technical data:Please refer to the relevant technical documents of ABB soft starter PSTX series
ABB PSTX570-600-70
2.Electrical parameters
Working voltage:208~690V AC
Rated control power supply voltage(Us):100~250V
Rated control circuit voltage(Uc):DC operation 24V
Rated frequency(f):main circuit 50/60 Hz
Rated operating power-plug-in connection(Pe):(400V)250kW
Rated operating current-plug-in connection(Ie):470A
Rated operating power-internal triangle connection:400V 450kW
Rated operating current-internal triangle connection:814A
3.Functional characteristics
Integrated electronic overload protection:With this function,the motor can be effectively protected from overload damage.
Adjustable rated motor current Ie:ranges from 30 to 100%,which can be adjusted according to actual needs.
Initial voltage at start-up:ranges from 10 to 99%,providing flexible start-up control.
Bypass signal relay:This function is built-in to facilitate bypass control of the circuit.
ABB PSTX570-600-70
IV.Physical parameters
Dimensions:361mm×493mm×282mm
Net weight of product:25kg
V.Product advantages and applications
Advantages:
Combines ABB’s many years of research and product development experience,as well as a broad understanding of application-specific requirements and needs.
Adds new features and reliability to motor starting applications.
When using PLC and networks,it has greater integration and flexibility,enabling easier fault diagnosis,faster and more convenient maintenance,and reducing installation,commissioning and reconfiguration costs.
Application:
Suitable for a variety of industrial applications such as pumps,fans,conveyors and compressors.
It can help protect motors from electrical shocks and extend motor life.
Starting current can be easily optimized according to load,application and motor size.
VI.Other information
Installation method:internal or external.
Part number:10157477.
Communication:Integrated Modbus RTU for monitoring and control.
