ABB IMCIS02

ABB IMCIS02 is a transmission module produced by ABB.The following is a detailed introduction to the product:

1.Product Overview

ABB IMCIS02 transmission module is an important part of ABB’s automation control system.It is responsible for transmitting data and information in the system to ensure normal communication and collaboration between various devices.The module adopts advanced technology and design,with high performance,high reliability and easy maintenance,and is widely used in industrial automation,process control and other fields.

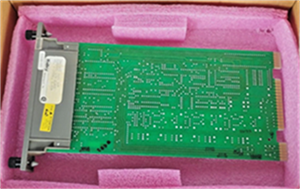

ABB IMCIS02

2.Product Features

Support multiple communication rates:

ABB IMCIS02 transmission module supports the predetermined communication rate in the standard specification,and can manually set all standard rates or achieve rate adaptation(all electrical interface rates are consistent)through the DIP switch.

Rich status indication:

The module is equipped with 6 two-color LED status indicators,which can clearly display status information such as power failure and relay output alarm,which is convenient for users to troubleshoot and maintain.

Powerful protection function:

The module has 4000V lightning protection,1.5A overcurrent protection and 600W surge protection to ensure stable operation in harsh industrial environments.

Wide redundant dual power supply design:

The DC9-36V wide redundant dual power supply design has DC1500V power isolation and reverse connection protection functions,which improves the power supply reliability and stability of the module.

Industrial-grade design:

The module has passed EMC test certification,has IP30 protection level,adopts corrugated aluminum reinforced housing and standard industrial 35mm rail installation method,suitable for various industrial environments.

ABB IMCIS02

III.Performance indicators

Data electrical interface:

9-pin Sub_D jack connector,the pin definition complies with the protocol specification of Profibus DP.

Supports Profibus DP bus standard.

Communication rates include 9.6kBit/s,19.2kBit/s,45.45kBit/s,93.75kBit/s,187.5kBit/s,500kBit/s,1.5MBit/s,6MBit/s and 12MBit/s,etc.

Power supply and protection:

Dual power supply redundant input,DC(9-36)V,typical DC24 V,power consumption less than 4 W.

With DC1500 V voltage isolation and reverse connection protection function,industrial terminal interface.

Relay alarm output:

Link fault and power fault alarm output,large contact capacity:DC48 V/1 A,industrial terminal interface.

IV.Application scenarios

ABB IMCIS02 transmission module is widely used in data transmission in industrial automation control systems.For example,in power systems,it can be used to transmit real-time data and control signals of power grids;in petroleum,chemical and other industries,it can be used to transmit various monitoring data and control instructions in the production process.In addition,the module is also suitable for various industrial environments that require high-reliability data transmission.
