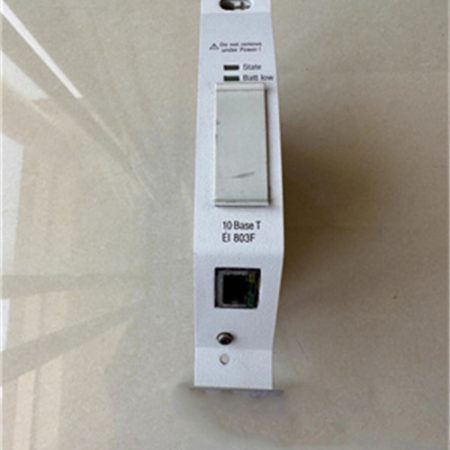

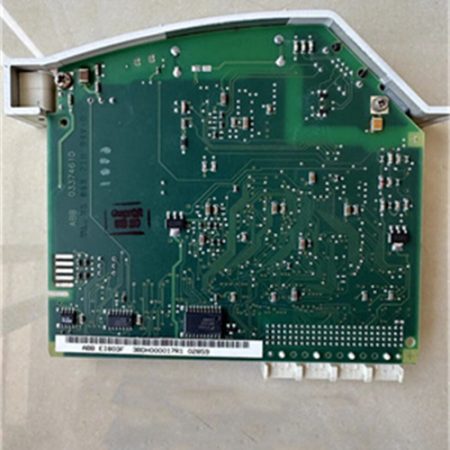

ABB EI803F

ABB EI803F is a high-performance industrial automation equipment.The following is a detailed introduction to it:

1.Basic information

Model:EI803F

Manufacturer:ABB,the company has deep technical accumulation and excellent brand reputation in the field of industrial automation.

Origin:There are different opinions about the origin.Some say it is produced in Switzerland,and some say it is produced in the United States.Switzerland is famous for its exquisite manufacturing industry.If EI803F is indeed produced in Switzerland,then it fully inherits the rigorous,precise and high-quality genes of Swiss manufacturing.

2.Physical characteristics

Dimensions:about 6.0″x2.0″x7.0″(15.2cmx5.1cmx17.8cm),which will not take up too much space due to its large size,and can reasonably layout the internal circuit.

Weight:about 0.1kg,light weight,easy to install and carry.

3.Working environment

Working temperature range:-20℃to+70℃,can work normally in a wide temperature range,with strong environmental adaptability.

Power supply requirements:Use 24V DC±10%power supply,this power supply specification is very common and stable in the industrial field.

4.Technical performance

Protection level:IP20,can prevent solid foreign objects larger than 12mm from entering,effectively preventing foreign objects from damaging the internal circuit of the device.

Communication speed:support 10/100 mbps auto-negotiation can automatically match the appropriate communication rate according to the communication capability of the connected device.

Supported protocols:Supports multiple communication protocols such as TCP/IP,UDP,SNMP,etc.,which is convenient for communication and data interaction with different manufacturers and different types of equipment.

Interface type:Equipped with Ethernet interface,twisted pair as the transmission medium,with the advantages of low cost,moderate transmission distance,and strong anti-interference ability.

V.Module composition and function

EI803F consists of CPU,communication module,power supply module and various accessories.The modular design gives it high flexibility and scalability.

CPU modules with different processing power,memory size and SIL(safety integrity level)can be selected according to specific application scenarios.

Each CPU module is equipped with two Ethernet ports,which not only supports interconnection between controllers,but also facilitates communication and data exchange between operators,engineers and other applications.

Flash memory cards can be inserted into the card slot of the CPU module to store applications and data,further enhancing the openness and scalability of the system.

VI.Application and Certification

Application areas:Widely used in manufacturing,energy,oil and gas,pharmaceuticals,water and wastewater treatment,building automation and other industries.In these industries,EI803F can accurately control production processes,monitor and control key systems,and improve production efficiency and system reliability.

Compliance with standards and certifications:Complies with IEC61508 standards,has passed TÜV certification,and can provide a SIL 1-3 control environment.It also meets the AK1-4 requirements of German standards DIN V 19250 and DIN VDE 0801,as well as the category 1-3 system requirements of the EN954-1 standard.
