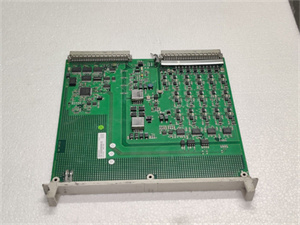

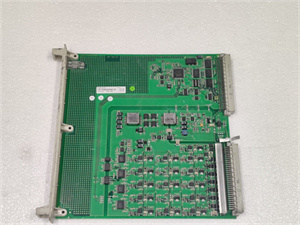

ABB DSAI130D

ABB DSAI130D is a high-performance analog input module developed by ABB.The following is a detailed introduction to the module:

1.Product Overview

The DSAI130D module is specially designed for industrial automation control systems.It can efficiently process various analog signals and provide users with accurate and reliable measurement data.The module plays a key role in factory and process automation applications and is particularly suitable for field device configuration,downstream data processing and interface integration.

ABB DSAI130D

2.Technical specifications

Number of channels:DSAI130D has 16 independent analog input channels.This design significantly improves the flexibility and efficiency of the system.Users can connect multiple types of analog signal sources at the same time according to different application requirements,which greatly improves the system’s adaptability and data collection efficiency.

Input range:This module supports two standard input ranges of±10V and±20mA,and is compatible with most common industrial sensors and transmitters.Whether it is processing voltage signals or current signals,DSAI130D can handle it easily without the need for additional signal conversion equipment.

Accuracy:The accuracy of DSAI130D reaches 0.025%,which is in a leading position among similar products.This high accuracy ensures a high degree of reliability of the measurement data and provides a solid foundation for subsequent control decisions.

Sampling rate:Although the official data does not clearly give a specific sampling rate value,considering the application positioning of DSAI130D,its sampling rate is sufficient to meet the needs of most industrial control and data acquisition.The efficient sampling mechanism ensures the continuity and integrity of real-time data,providing strong support for precise control of dynamic processes.

Filter function:DSAI130D is equipped with four sets of optional filter time constants,namely 20ms,10Hz,30Hz,100Hz and 300Hz(Note:Different data may list different combinations of filter time constants,but the core meaning is to provide a variety of filters options).This feature allows users to select the most appropriate filter settings based on different signal characteristics and noise environments.Through reasonable filtering configuration,high-frequency noise can be effectively suppressed and the quality and reliability of the signal can be improved.

3.Functional features

High-performance analog input:The DSAI130D is capable of handling a wide range of signal types and input ranges,demonstrating its adaptability and flexibility in complex industrial environments.

High-precision data acquisition:Using high-resolution analog-to-digital converters,DSAI130D is able to capture subtle signal changes to ensure the accuracy of measurement results.

Flexible filtering options:Multiple filtering time constant options allow users to optimize signal quality according to the needs of specific application scenarios.

Intelligent linearization processing:Built-in advanced linearization algorithm can automatically correct the deviation of nonlinear signals and provide more accurate and consistent measurement results.

Real-time data processing:Adopt an efficient processor architecture to achieve real-time data collection and processing to meet the needs of rapid response process control.

Data compression and aggregation:optimize data transmission and storage efficiency,reduce data transmission volume and storage space occupation.

Fault diagnosis and status monitoring:It has fault diagnosis and status monitoring functions to help prevent potential failures and maintenance and ensure the safe operation of the system.

ABB DSAI130D

4.Application areas

DSAI130D module is widely used in the field of industrial automation,including but not limited to the following aspects:

Production line monitoring:Real-time collection of temperature,pressure,flow and other physical parameters to provide comprehensive status monitoring for the production process.

Quality control:High-precision measurement capabilities make it an ideal tool for product quality control,such as monitoring weight and volume on packaging lines.

Equipment health management:By continuously monitoring the vibration,temperature and other parameters of key equipment,it helps predict potential equipment failures and achieve preventive maintenance.

Chemical production:Accurately monitor parameters such as temperature,pressure and liquid level in the reactor to ensure that chemical reactions are carried out under optimal conditions.

Energy management:Monitor the combustion efficiency of the boiler and improve energy utilization through precise control of fuel supply and air ratio.
