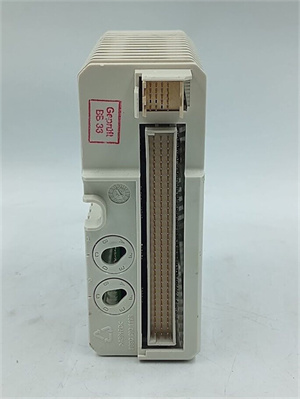

ABB AO845 3BSE023676R1

ABB AO845 3BSE023676R1 is an analog output module produced by ABB.The following is a detailed introduction to the module:

1.Product Overview

The ABB AO845 3BSE023676R1 module is a key component in the ABB Advant 800xA distributed control system(DCS).It is responsible for responding to control signals from the controller and generating analog current signals to drive field devices.The module acts as a bridge between the digital world of the controller and the analog world of field devices,enabling precise control of actuators,valves and other analog control devices.

ABB AO845 3BSE023676R1

2.Main Features and Functions

4-20mA current output:The AO845 module is able to generate analog current signals in the standard 4-20mA range,which is compatible with a variety of industrial actuators and control valves,ensuring a wide range of applicability.

High accuracy and resolution:The module has 12-bit resolution and is able to generate high-precision analog signals,thereby ensuring precise control of connected devices.

Electrical isolation:The module integrates electrical isolation function,which effectively protects the internal circuit of the controller from potential ground faults and electrical noise interference that may be caused by field devices.

Advanced diagnostic functions:AO845 provides advanced diagnostic functions including channel monitoring,error detection and fault reporting,which ensure the reliable operation of the system and simplify the troubleshooting process.

Compact design:The module adopts a compact design,which saves installation space in the control panel and cabinet and improves the overall integration of the system.

III.Application fields

ABB AO845 3BSE023676R1 module is widely used in various industrial automation and control systems,including but not limited to:

Process control system:used to control valves,pumps and other actuators to accurately adjust process parameters such as temperature,pressure,flow and liquid level.

Machine automation system:used to control motors,drives and other analog control components to ensure precise positioning,speed control and force application.

Test and measurement system:used to generate precise analog signals to meet the needs of calibration,testing and data acquisition.

Building Automation System:Used to control HVAC systems,lighting and other analog control equipment to improve energy efficiency,living comfort and safety.

ABB AO845 3BSE023676R1

4.Technical Specifications and Parameters

Brand:ABB

Model:AO845 3BSE023676R1

Voltage:Usually 24V(specific voltage may vary depending on application requirements)

Current:Output current range is 4-20mA

Resolution:12 bits

Weight:About 2KG(specific weight may vary depending on product batch and configuration)

Packaging:Usually in good packaging,suitable for transportation and storage

Origin:May vary depending on production batches and supply chain conditions,but ABB,as a world-renowned brand,its product quality and performance meet international standards.

5.Precautions and Purchase Recommendations

Please confirm the product model and specifications when purchasing:Make sure the selected ABB AO845 3BSE023676R1 module meets your application requirements and system requirements.

Pay attention to the source and channel of the product:It is recommended to purchase from official channels or authorized agents to ensure the authenticity and after-sales service of the product.

Understand the product warranty and maintenance policy:Before purchasing,please understand the product warranty period and maintenance policy so that you can get timely technical support and repair services when needed.

In summary,the ABB AO845 3BSE023676R1 module is a powerful and stable analog output module suitable for various industrial automation and control systems.When purchasing and using,please be sure to follow the above recommendations and precautions to ensure the best performance and reliability of the product.
