ABB 5SHY3545L0016

ABB 5SHY3545L0016 is a high-performance semiconductor control device or thyristor module.The following is a detailed introduction to it:

1.Product Overview

ABB 5SHY3545L0016 is a power and electronic control device produced by ABB,which is widely used in control and regulation in power and industrial applications.It has high reliability and stability,can operate in harsh environments,and provides adjustable current and voltage control functions to meet the needs of different loads.

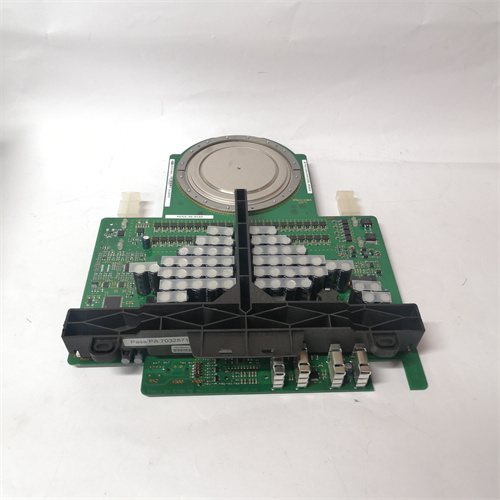

ABB 5SHY3545L0016

2.Main features

High reliability and stability:ABB 5SHY3545L0016 has excellent reliability and stability,can operate stably for a long time in various harsh environments,and ensure the safety and reliability of the power system.

Adjustable current and voltage control:The device provides adjustable current and voltage control functions,allowing users to accurately control power according to actual needs to meet the needs of different loads.

Fast response time:ABB 5SHY3545L0016 has a fast response time and can quickly switch load current and voltage to meet the dynamic needs of the system and improve the efficiency and stability of the power system.

Overload and short-circuit protection function:The device also has overload and short-circuit protection functions,which can protect the load from damage under abnormal conditions and extend the service life of the equipment.

III.Application fields

ABB 5SHY3545L0016 is widely used in various power and industrial applications,including but not limited to:

Power system:used for the control and regulation of power systems to improve the efficiency and stability of power systems.

Industrial automation:used for the control and regulation of industrial automation equipment to realize the automation and intelligence of production lines.

Energy management:used in energy management systems to accurately control and manage power and improve energy utilization efficiency.

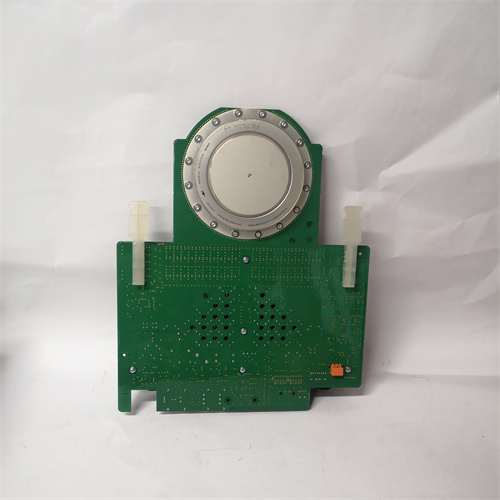

ABB 5SHY3545L0016

IV.Technical specifications

The technical specifications of ABB 5SHY3545L0016 include but are not limited to:

VDRM(reverse repetitive peak voltage):4500V

ITGQM(gate trigger current):4000A

Installation force:40kN

Other features:high bufferless shutdown rating,optimized for medium frequency,high electromagnetic immunity,simple control interface with status feedback,AC or DC supply voltage,series connection options,etc.
