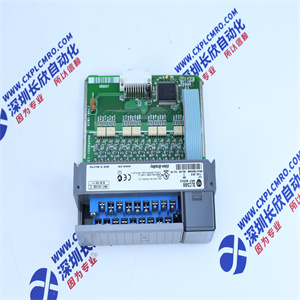

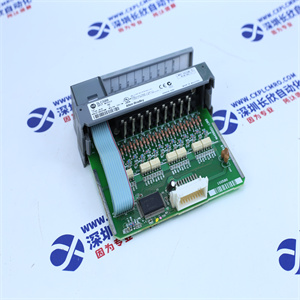

AB 1746-IB16 is a digital input module produced by AB(Allen Bradley)company,used to convert external digital signals into PLC(Programmable Logic Controller)readable signals.This module has 16 input channels,each of which can accept a digital signal.It can be used in conjunction with AB’s SLC 500 and MicroLogix series PLCs.

AB(Allen Bradley)is a leading global provider of automation control and information solutions,with products widely used in industries such as manufacturing,energy,transportation,construction,and infrastructure.

The method of using AB 1746-IB16 module is as follows:

1.Insert the module into the PLC rack and connect it to the PLC.

2.Connect the external digital signal to the input port of the module.

3.Configure the input channels of the module in the PLC programming software so that the PLC can read external digital signals.

4.Use instructions to read module input channels in PLC programs to obtain the status of external digital signals.

5.As needed,logical operations and control instructions can be used in PLC programs to process external digital signals and control the operation of other devices or systems.

AB 1746-IB16 is an input module commonly used in industrial automation control systems. The following are the general specifications:

1. Input type: 1746-IB16 is a digital input module that accepts digital signals as inputs.

2. Number of input channels: This module has a total of 16 input channels, each of which can be connected to a digital input signal source.

3. Input voltage range: Typically, the 1746-IB16 module supports a direct current (DC) input voltage range of 10-30 volts.

4. Input signal type: Each input channel can accept digital signals, usually used to detect the status of digital switches (such as whether the switch is open or closed).

5. Overload protection: Modules usually have overload protection function to ensure that the module will not be damaged when the input signal exceeds the specified range.

6. Connection interface: Usually connected to a PLC (programmable logic controller) or other control equipment using a cable. It usually uses screw terminals or socket connections.

7. Working temperature range: The specific working temperature range may vary from manufacturer to manufacturer, but it is usually within the temperature range used in industrial environments.

AB 1746-IB16 is a digital input module used to input external digital signals into the AB PLC system. The following are the steps to use AB 1746-IB16:

1. Insert the module into the free slot of AB PLC and secure it with screws.

2. Connect the input port of the module to an external digital signal source. Each input port has a corresponding LED indicator light to indicate the status of the input signal.

3. In the programming software of AB PLC, configure the input points of the module. Each input point has a corresponding bit address that can be used in the program.

4. Use input points in the program to read the status of external digital signals. You can use Ladder logic or other programming languages.

5. Process input signals in the program to achieve the required functionality. For example, input signals can be used to trigger other operations or control output devices.

6. Monitor the status of input signals during operation to ensure normal system operation.
