AB 1746-IB16

AB 1746-IB16

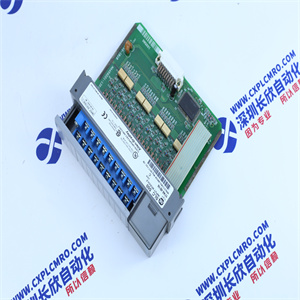

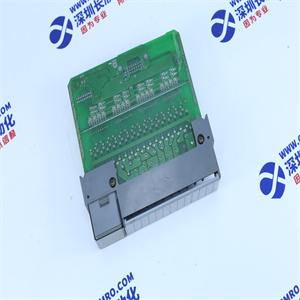

The AB 1746-IB16 is a digital input module manufactured by Allen Bradley, a leading provider of automation and control solutions. It is designed to be used with the SLC 500 and MicroLogix 1500 programmable logic controllers (PLCs).

The module has 16 inputs, each of which can be configured as either sinking or sourcing. It operates on a voltage range of 10-30V DC and has a maximum input current of 5mA. The module is designed to be mounted on a DIN rail and has a compact size of 4.65 x 3.54 x 1.77 inches.

The AB 1746-IB16 is ideal for applications that require monitoring of digital signals such as limit switches, push buttons, and proximity sensors. It provides reliable and accurate input data to the PLC, allowing for precise control and automation of industrial processes.

Some of the key features of the AB 1746-IB16 module include:

• 16 digital inputs
• Sinking or sourcing input configuration
• 10-30V DC voltage range
• Maximum input current of 5mA
• DIN rail mountable
• Compact size

AB 1746-IB16 is a digital input module with the following advantages:

1.High reliability:Adopting industrial grade components,it has high reliability and stability.

2.High precision:Adopting high-precision digital signal processing technology,it can accurately detect input signals.

3.Strong flexibility:Supports multiple input signal types,including DC and AC signals,and can meet the needs of different application scenarios.

4.Easy to install and maintain:Modular design,easy to install and maintain.

AB 1746-IB16 is mainly used in industrial automation control systems to detect digital input signals,such as switch status,sensor signals,etc.Common application scenarios include:

1.Robot control system

2.Automated production line

3.Industrial automation equipment

The method of using AB 1746-IB16 module is as follows:

1.Insert the module into the PLC rack.

2.Connect the input signal to the input port of the module.

3.Configure the PLC program to read the input signals of the module.

4.Test whether the input signal of the module is normal.

5.If necessary,conduct debugging and optimization.

AB 1746-IB16 is a digital input module produced by Rockwell Automation in the United States. Rockwell Automation is a leading global provider of industrial automation solutions, covering multiple fields from sensors to controllers, motion controllers, human-machine interfaces, industrial networks, and information solutions. The AB 1746-IB16 module is a component of a programmable controller (PLC) produced by Rockwell Automation, used to input digital signals into the PLC for processing and control. This module has the characteristics of high precision, high reliability, easy installation and maintenance, and is widely used in industrial automation control systems.
