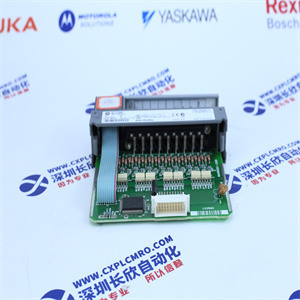

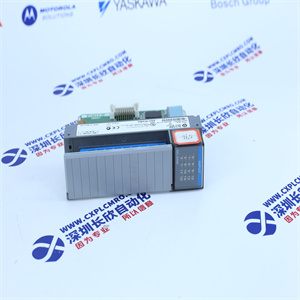

AB 1746-IB16

AB 1746-IB16

Product Description:

AB 1746-IB16 is a high-performance digital input module used to convert external digital signals into computer-readable signals.This module has 16 input channels,each of which can be used to connect different external devices.It can be used in conjunction with automation systems such as PLC(Programmable Logic Controller)to provide accurate and reliable data input for industrial automation processes.

Product parameters:

-Number of input channels:16

-Input type:DC/AC discrete input

-Input voltage range:DC 0-30V;AC 0-250V

-Response time:10 microseconds

-Input overvoltage protection:Yes

-Isolation voltage:250V AC

-Power supply voltage:24V DC

Usage:

1.Connect the AB 1746-IB16 module correctly to the digital input port on the PLC or other controller.

2.Connect the signals to be monitored to the input ports of the module based on the type and requirements of external devices.

3.Configure the working parameters of the module,such as input voltage range,overvoltage protection,etc.

4.Write appropriate programs on the PLC or controller to read and process the digital input signals transmitted by the module.

Product application:

The AB 1746-IB16 module is suitable for various industrial automation applications,including but not limited to the following fields:

-Sensor signal acquisition:Converts the digital signals output by various sensors into computer-readable signals to achieve monitoring and control of industrial processes.

-Switch and button inputs:Used to monitor and control discrete input signals such as switches and buttons on machines or equipment.

-Instrument reading:Connect the digital output of the instrument to the module to achieve automated monitoring and recording of instrument readings.

AB(Allen Bradley)is a subsidiary of Rockwell Automation,one of the world’s leading providers of industrial automation solutions.The AB brand enjoys a high reputation in the field of industrial automation with its high quality,reliability,and leading technology.

Product advantages:

1.High reliability:AB 1746-IB16 adopts advanced technology and materials to ensure the reliability and stability of the product,suitable for various harsh industrial environments.

2.Flexibility:This module supports multiple input types,including DC,AC,digital signals,etc.,and can meet the needs of different applications.

3.Large capacity:1746-IB16 supports up to 16 digital input channels,which can meet large-scale input needs.

4.Easy to integrate:The module is compact in size,easy to install,and suitable for various cabinets and control systems.

Product specifications:

-Input voltage range:DC 10-30V

-Input type:DC/AC/digital signal

-Number of input channels:16

-Input current:maximum 10 mA

-Input impedance:maximum 1.5 kΩ

-Response time:maximum 1 ms

-Installation method:DIN rail installation

-Size:approximately 117 x 45 x 106 mm

-Weight:approximately 200 g
