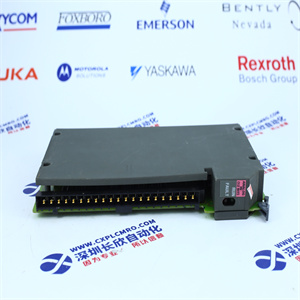

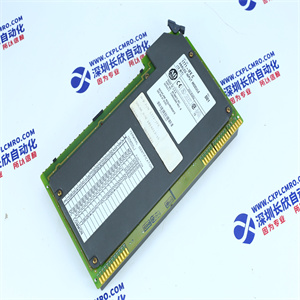

A-B 1771-IFE

A-B 1771-IFE

• Manufacturer: Allen-Bradley
• Model: 1771-IFE
• Type: Analog Input Module
• Input Type: Differential or Single-Ended
• Input Range: -10V to +10V, 0V to +10V, 0mA to 20mA, 4mA to 20mA
• Resolution: 12 bits
• Isolation: 1500V AC for 1 minute
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Dimensions: 4.65 x 12.09 x 3.43 inches
• Weight: 0.8 lbs

The A-B 1771-IFE is a digital input/output module manufactured by Allen-Bradley. It is part of the 1771 I/O series and is designed to be used with PLC-5 programmable controllers. The module has 8 inputs and 8 outputs, with each input and output being individually isolated. The inputs are designed to accept 24V DC signals, while the outputs can provide up to 5A of current at 24V DC. The module is commonly used in industrial automation applications to interface with sensors, actuators, and other devices.

Pi Technology PWM Output Main Board 25T-060003

NOKIA D50e ATM LINK INTF CARD eSTM1LS E35478.01 New

HoneyWell C7061F2001 Purple Peeper Flame Detector C7061

PELCO ES3012-2N Esprit Pan/Tilt Enclosure Receiver Ped

NEW HAAS 30-1078 bearing Assy NACHI 6016

DYNAX Atoms DMC-2X DNX1312 Drive NEW SPARE

Bluecoat 800-2 ProxySG 080-02693 NEW

SIC C98B Dot Peen Marking Machine controller refurbish

ABB Motor M2AA180M 3GAA182111-BDA 118KG NEWinbox

Parameters:

• Number of Inputs: 8
• Input Voltage Range: -10V to +10V, 0V to +10V
• Input Current Range: 0mA to 20mA, 4mA to 20mA
• Input Impedance: 250 ohms
• Input Resolution: 12 bits
• Conversion Time: 10ms
• Input Filtering: 50Hz low-pass filter
• Isolation Voltage: 1500V AC for 1 minute
• Power Consumption: 1.5W max
• Backplane Current Load: 0.3A @ 5V DC, 0.04A @ 24V DC
• Operating Voltage: 5V DC or 24V DC (from backplane)
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% non-condensing
• Shock Resistance: 30g
• Vibration Resistance: 5g (10Hz to 500Hz)
• Certifications: CE, CSA, UL, ATEX, FM, IECEx
