A-B 1756-PA72,also known as Allen-Bradley 1756-PA72 or 1756-PA72 C,is a key component in Rockwell Automation’s ControlLogix system,namely the standard AC power module.The following is a detailed introduction to A-B 1756-PA72:
I.Main features

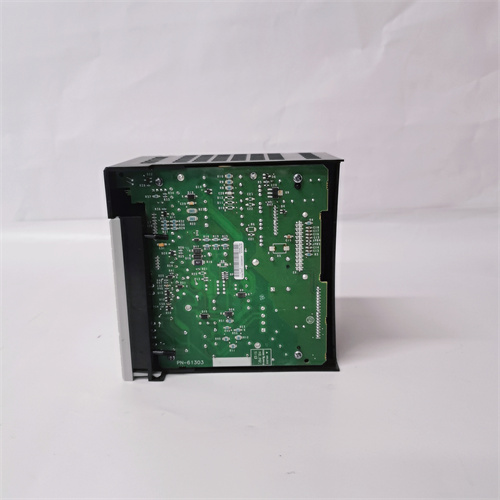

A-B 1756-PA72
Input voltage:85~265VAC,nominal power supply is 120V/240VAC.
Output:
Current capacity is 4A at 3.3VDC.
Current capacity is 10A at 5.1VDC.
Current capacity is 2.8A at 24VDC.
Rated power:
Rated output power is 75W at 0+60°C(+32+140°F).
Power consumption rating is 25W in the range of 0~60°C.
Input frequency:47~63 Hz.
Maximum input voltage:100VA or 100 watts.
Power consumption rating:85.3 BTU/hour.
Maximum inrush current:20 amps.
Maximum current:15 amps.
Maximum transformer load:100VA.
Continuous voltage isolation:250 volts.
Insulation type:reinforced insulation,3500V DC for 60 seconds.
A-B 1756-PA72
2.Functions and applications
Provide stable power supply:As the core component of the ControlLogix system,the A-B 1756-PA72 is responsible for providing the system with stable and reliable DC power to meet the operating requirements of the ControlLogix control system and other related modules.
Overload protection:The power module has an overload protection function,which can cut off the power supply in time when an overload occurs to prevent equipment damage or system failure caused by overload.
Application in industrial automation:The A-B 1756-PA72 is widely used in industrial automation,especially in situations where precise control and high reliability are required.Its powerful functions and stability make it an important part of distributed control systems(DCS)and programmable logic controllers(PLC)systems.
The company mainly imports PLC modules,programmable controllers,servo control systems and DCS spare parts,such as:ABB,AB(Rockwell),GE(General Electric),Bentley,Honeywell Er),Emerson.),Motorola,Invensys,Westinghouse,etc.The company has established close cooperative relations with many world-renowned PLC and DCS product maintenance service providers.We can purchase goods directly from abroad and provide equipment and spare parts from different countries and manufacturers.
We supply goods directly from abroad,without intermediaries,reducing the cost of use.
There is really no medium that can make a difference!!
Shenzhen Changxin Automation-sufficient supply,large spot quantity,guaranteed quality,you can buy with confidence and use with peace of mind~!
If you have any defects or needs for imported PLC and DCS spare parts,please contact our team,we will help you find reliable and high-quality products super quickly,while shortening delivery time to ensure that your equipment can operate normally in the right environment.Just in time.
Professionally provide:PLC programmable control system,distributed control system(DCS),safety instrument system(SIS),ESD system,vibration monitoring system,turbo compressor unit control system(CCS)and other PLC modules,various industrial control systems,system modules,CPU,IO module,DO module,AI module,DI module,network communication module,Ethernet module,motion controller,analog input module,analog output module,digital input module,digital output module,module redundancy,power module,relay output unit,relay input unit,processor unit.
Products are widely used in:electricity,petroleum,mine hoisting,ports,heating,gas,water supply,sewage treatment,metallurgy,papermaking,textile,chemical industry,water conservancy and other modern industrial fields!
