Here is a more detailed description of the A-B 1756-OB8:

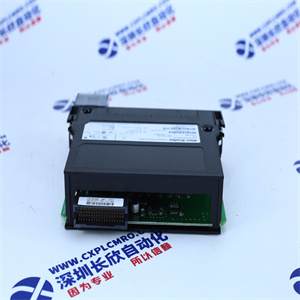

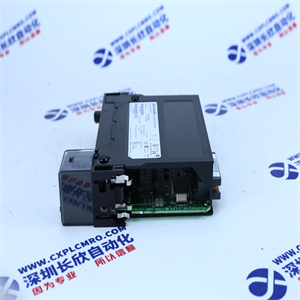

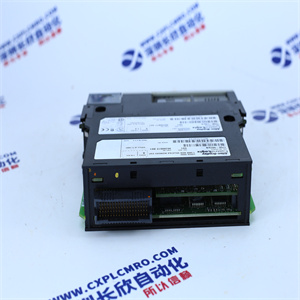

Product Name: A-B 1756-OB8 Digital Output Module

Description: The A-B 1756-OB8 is a high-performance digital output module that belongs to the Allen-Bradley ControlLogix series. It is designed to provide reliable and efficient digital output capabilities in a wide range of industrial automation applications. The module is built to withstand harsh industrial environments and deliver precise control signals.

With 8 output channels, the A-B 1756-OB8 offers flexibility and versatility in controlling various devices and equipment. Each channel is capable of sourcing or sinking current, making it suitable for different types of loads. The module supports both AC and DC output voltage, allowing seamless integration into different power systems.

Installation and setup of the A-B 1756-OB8 are straightforward, thanks to its user-friendly design and compatibility with the ControlLogix platform. The module can be easily inserted into the ControlLogix chassis and configured through the programming software. It also supports hot-swapping, enabling replacement or addition of modules without interrupting the operation of the PLC system.

The A-B 1756-OB8 is equipped with diagnostic features that facilitate troubleshooting and maintenance tasks. It provides detailed status information for each output channel, enabling quick identification of potential issues. Additionally, the module supports advanced fault detection and reporting, ensuring reliable operation and minimizing downtime.

Overall, the A-B 1756-OB8 digital output module is a reliable and versatile solution for industrial automation applications. Its robust design, flexible channel configuration, and advanced diagnostic capabilities make it an ideal choice for controlling and monitoring various processes and equipment in PLC systems.

Sopha Medical Systems GE-Raytheon VME Plug-In Board

Sopha Medical Systems Color VME Plug-In Board

BROWN,C/ROACH,M CLIFFORD BROWN&MAX ROACH:VME SERIES

Sopha Medical Systems ADC VME Plug-In,Analog/Digital

Sopha Medical Systems Graphics VME Plug-In Board

LIONEL HAMPTON QUINTET:VME(RMST)By HAMPTON,LIONEL CD

Heurikon Laguna R4600 VME MVME 1439115-3 Rev E

Module Parameters:

• Number of Outputs: 8
• Output Type: Digital
• Voltage Range: 10-60V DC
• Current per Output: 2A per point (4A per bank)
• Isolation Voltage: 50V continuous, reinforced (between field and backplane)
• Surge Current: 32A (8/20 µs)
• Off-state Leakage Current: 1mA (maximum) at 60V DC
• On-state Voltage Drop: 1.5V DC (maximum) at 2A
• Response Time: 0.2 ms (ON to OFF) and 0.1 ms (OFF to ON)
• Power Dissipation: 8W (maximum)
• Operating Temperature: 0-60°C (32-140°F)
• Storage Temperature: -40-85°C (-40-185°F)
