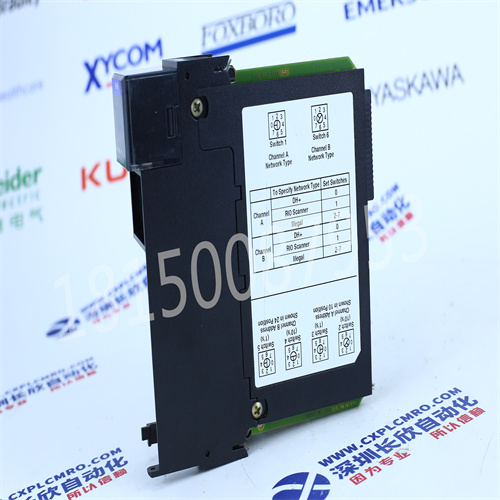

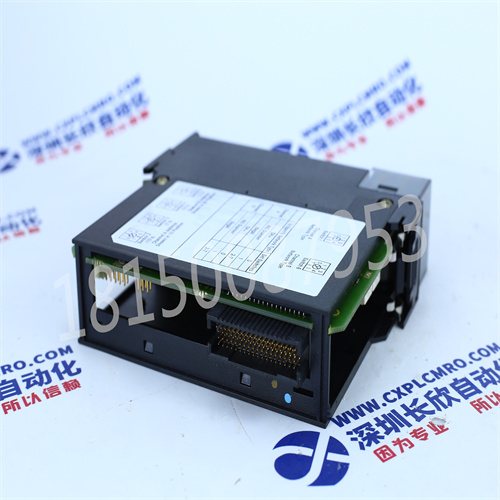

A-B 1756-DHRIO is a module used in the Allen-Bradley ControlLogix series of programmable logic controllers (PLCs). It is designed to provide a communication interface between the PLC and other devices on a network.

The module supports the Data Highway Plus (DH+) network, which is a proprietary communication protocol developed by Allen-Bradley. It allows for high-speed data exchange between multiple devices connected to the network.

The 1756-DHRIO module features two communication ports that can be used to connect to DH+ network. It supports both point-to-point and multi-drop configurations, allowing for flexible network topologies.

The module is capable of handling data transfer rates of up to 57.6 kilobits per second, making it suitable for applications that require fast and reliable communication.

Overall, the A-B 1756-DHRIO module is a critical component in ControlLogix systems that enables seamless communication between different devices on a DH+ network.

Westinghouse SPCB 2000 Amp SPCB2000 2000A Trip LSIG

Sew Eurodrive KAF97R57.75/S1 KW Gear Reducer NEW

US Electric Titan TE Motor 300 HP 1785 RPM 449TL 449T

Cooper 0053LP12KZ5A 750 kVA 4160/2400 208/120 Padmount

Siemens 750kVA 13200/480Y/277V Padmount Transformer 3PH

Telemecanique Altivar 71 ATV71HC13N4 Drive 200HP/132kW

The content of the product information materials for the A-B 1756-DHRIO would typically include:

1. Product Overview: This section provides a brief introduction to the module, highlighting its key features and functionalities.
2. Technical Specifications: This section lists the technical specifications of the module, such as its dimensions, weight, voltage requirements, operating temperature range, and certifications.
3. Communication Features: Here, the product information materials would detail the communication capabilities of the A-B 1756-DHRIO. This includes the available protocols supported by the module, such as ControlNet, DeviceNet, EtherNet/IP, and others.
4. Installation and Configuration: This section would provide step-by-step instructions on how to install and configure the module within a ControlLogix system. It may include guidelines on wiring, addressing, and setting up the module for communication.
5. Troubleshooting and Diagnostics: This part would offer troubleshooting tips and techniques for resolving common issues that may arise during installation or operation. It may also cover diagnostic tools and features available for monitoring the module’s performance.
6. Integration with other Allen-Bradley Products: If the A-B 1756-DHRIO is designed to work in conjunction with other Allen-Bradley products, the product information materials may include information on how to integrate and configure these components together.
7. Ordering and Support Information: This section would provide details on how to order the A-B 1756-DHRIO module, including part numbers and options available. It would also offer contact information for technical support or customer service.

It is important to note that the specific content and parameters of the product information materials may vary depending on the manufacturer’s documentation standards and the version or release of the product. Therefore, it is always recommended to refer to the official documentation provided by Allen-Bradley for the most accurate and up-to-date information.
