Product description

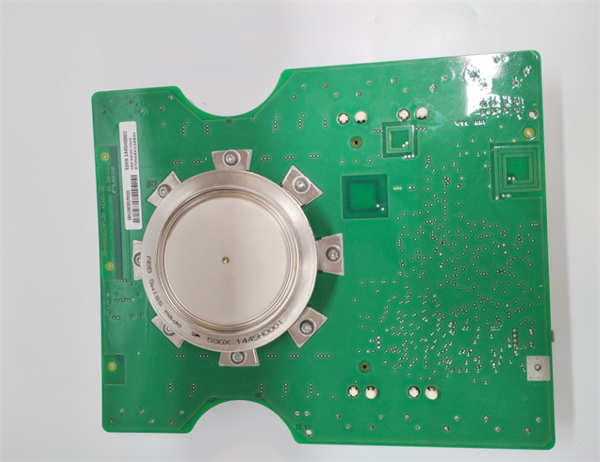

5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152 ABB IGCT module
Series:
ABB 5SXE05 series
Functions:
In power electronic systems,used to control high-power currents
Purpose:
Electric drive
Renewable energy generation
Grid control
Industrial control
Features:
High power:can withstand up to 4500A current
High voltage:can withstand voltage up to 6500V
High efficiency:low switching loss
Product Description:
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152 ABB IGCT module is a high power,high voltage,high efficiency IGCT module designed for power electronics systems.It has the following characteristics:
High power:can withstand up to 4500A of current,can meet the needs of high-power power electronic systems
High voltage:can withstand voltages up to 6500V,can be used in high-voltage power electronics systems
High efficiency:Low switching loss,can improve the efficiency of the system
Product Description:
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152 ABB IGCT module adopts modular design and is easy to install.It has the following structure:
Chip module:includes IGCT chip
Heat dissipation module:provides heat dissipation for the chip
Driver module:provides driving signals for the chip
Product parameters:
Current:4500A
Voltage:6500V
Power:30MW
Switching loss:0.5%
Product Specifications:
Dimensions:233mm x 102mm x 41mm
Weight:1.2kg
Application field:
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152 ABB IGCT module can be widely used in power transmission,renewable energy power generation,power grid control,industrial control and other fields.
Here are some examples of specific applications:
In the field of electric drive,it is used to control motor speed and torque
In the field of renewable energy generation,it is used to control the output power of wind turbines and photovoltaic generators
In the field of power grid control,it is used to control reactive power and voltage
In the field of industrial control,it is used to control production equipment in metallurgical,chemical,textile and other industries
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152 ABB
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152 ABB
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152 ABB
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152 ABB
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152 ABB
