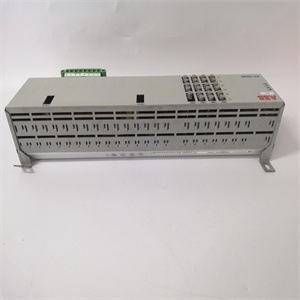

3BHE022291R0101 PCD230A ABB

Product Model: 3BHE022291R0101 PCD230A ABB

Product Parameters:

• Power Supply: DC (9-36)V, typically DC 24V, with less than 4W power consumption¹.
• Communication Interfaces: Supports multiple communication interfaces, such as Ethernet, serial communication, etc.²³.
• Inputs/Outputs (I/O): Provides multiple input and output channels for connecting various sensors and actuators²³⁴.
• Processor: High-performance processor³⁵⁶.
• Memory: 256kb RAM, 1mb Flash⁵.

•

  3BHE022291R0101 PCD230A ABB

Product Specifications:

• Dimensions: 132mm x 105mm x 52mm (mentioned in one source) or 100mm x 150mm x 50mm (another source)¹⁵.
• Weight: 800g (mentioned in one source) or 0.5 kg (another source)¹⁵.
• Operating Temperature: -10°C to 70°C (standard) or -20°C to 60°C (another source)¹⁵⁶.
• Protection Level: IP30¹.
• Installation: 35mm DIN rail installation¹.

Features:

• High Reliability: Designed for industrial environments with high reliability and stability²³⁴.
• Data Processing: Equipped with powerful data processing and storage capabilities³⁴⁶.
• Dual Power Supply Redundancy: Ensures stable operation during power fluctuations or failures⁶.
• Communication Flexibility: Supports various communication protocols and interfaces²³⁴.
• Programmability: Supports programmable functions for customized logic control²³⁴.

3BHE022291R0101 PCD230A ABB

Functions:

• Control Logic: Used to write and execute complex control algorithms and programs².
• Data Exchange: Allows for data exchange and remote monitoring via communication interfaces⁴.
• Monitoring and Control: Monitors and controls various industrial processes and equipment³.
• Integration: Easily integrates into various industrial automation systems²³⁴.

Application Areas:

• Industrial Automation: Widely used in various industrial automation systems, such as manufacturing, energy, chemicals, and transportation²³⁴.
• Monitoring and Control: Used for monitoring and controlling various types of industrial equipment and processes³.

Please note that the specifications and parameters may vary depending on the specific model and configuration of the product. It is recommended to consult the official ABB documentation for the most accurate and up-to-date information.
