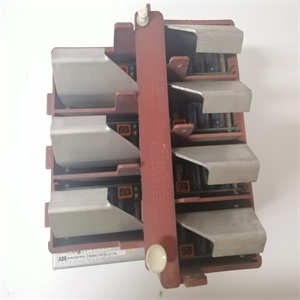

3BHB004661R0001 KUC711AE ABB

Product Model: 3BHB004661R0001 KUC711AE ABB

Product Parameters (based on [3]^):

• Input Signals:
  • Thermocouples: K, S, E, J, T, B, N, etc.
  • Thermal Resistances: Pt100, Cu50, etc.
  • Resistances: 0–80Ω, 0–400Ω, etc.
  • Voltages: Various ranges, e.g., 0–20mV … 0–1V (input impedance ≥5MΩ), 0–5V (input impedance ≥100KΩ)
  • Currents: 4–20mA, 0–20mA, etc. (input resistance ≤250Ω for 0–10mA, ≤500Ω for others)
• PID Control Output:
  • Voltages: 0–5V, 1–5V (load resistance ≥200KΩ)
  • Currents: 0–10mA (load resistance ≤1000Ω), 4–20mA, 0–20mA (load resistance ≤500Ω)
• Relay: Contact switch output, contact capacity 220VAC/2A or 24VDC/2A
• SSR Drive: Drive voltage of 12VDC/30mA (for driving SSR solid-state relays)
• Communication Transmitter Output: 4~20mA, 1~5V, Rs485 communication
• Accuracy: ±0.2%F.S±1 digit, with automatic compensation for temperature and time drift
• Current Output Load Capacity: 0~600Ω or 0~250Ω
• Measurement Control Cycle: 0.5s
• Power Distribution Output: DC24±1V (25mA)
• Isolation Voltage: Input-Output: 1500V, Input-Power, Output-Power: 1000V
• Working Environment: Temperature, 0~50℃; Relative humidity ≤80%RH
• Power Supply: Switching power supply 100～240VAC (50HZ/60HZ), 24VDC/AC±2V
• Power Consumption: ≤ 2W

•

  3BHB004661R0001 KUC711AE ABB

Product Specifications and Dimensions (based on [3]^):

• Appearance Color: Green
• Installation Size: 100×112×45(22.5)mm
• Installation Method: DIN35 rail

Weight: Not specifically mentioned in the search results.

Features (based on [4][6]^):

• High Accuracy: With high-precision pressure sensors, it can accurately measure dynamic pressure changes and provide precise data output.
• Fast Response: Capable of capturing pressure changes quickly and measuring them accurately.
• Good Stability: Maintains accurate measurement results under varying environmental conditions.
• Multiple Output Options: Supports multiple output signals, such as analog or digital signals, for easy integration with different devices or systems.
• Easy Integration: Simple interfaces and integration schemes allow for easy integration and installation with other systems or devices.
• High Reliability: Can operate stably for long periods in harsh industrial environments.
• Easy Maintenance and Calibration: Simple maintenance and calibration procedures for easy upkeep.

Functions (based on [2][5]^):

• Excitation Control: Controls and regulates excitation current for synchronous generators or motors, ensuring their normal operation.
• Flexible Control Modes: Supports various excitation control modes, such as voltage control and current control, with programmable control options.
• Protection: Incorporates protection functions like overcurrent, overvoltage, and undervoltage protection to prevent equipment damage.
• Fault Diagnosis and Alarm: Able to detect and locate faults, improving system reliability and stability.

Application Areas (based on [5]^):

• Power Generation: Used in hydroelectric, combined cycle, and pumped storage power plants.
• Shipbuilding: Solutions for marine applications.
• Oil and Gas: Solutions for the oil and gas industry.
• Traction: Solutions for traction systems.
• Port Cranes: Solutions for harbor cranes.
• Mining Trucks: Solutions for mining trucks.
