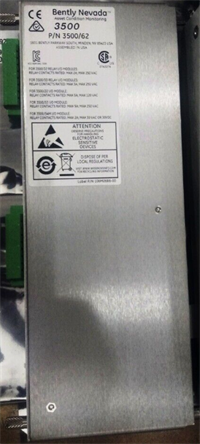

3500/62 BENTLY NEVADA Process Variable Monitor

Product Description

The 3500/62 BENTLY NEVADA process variable monitor is mainly used to monitor and record various process variables,such as temperature,pressure,flow rate,etc.,to ensure the stability and safety of the process.

feature

High precision and reliability

Wide range of input options

Advanced diagnostic features

Seamless integration with existing systems

The Bently Nevada 3500/62 Process Variable Monitor is an advanced device designed to monitor and analyze process variables in industrial environments.It provides high precision and reliability,allowing operators to closely monitor key parameters and detect any anomalies or deviations.With its advanced diagnostic capabilities,it provides valuable insights into the health and performance of industrial processes.

The 3500/62 process variable monitor is a 6-channel monitor used to process critical machine parameters such as pressure,flow rate,etc.that require continuous monitoring

Temperature and level.The monitor accepts any proportional voltage input between+4 to+20 milliampere current or-10Vdc to+10 Vdc.It adjusts these signals and compares the adjusted signals with user programmable alarm points.

3500/62 monitor:

Continuously compare monitored parameters and configured alarm set points to drive mechanical protection alarms.

Provide important mechanical information for operation and maintenance personnel.

3500/62 can be programmed using 3500 rack configuration software to perform current or voltage measurements.3500/62 provides input/output modules for three signal input scenarios:+/-10V DC,isolated 4-20mA,or 4-20mA with intrinsic safety Zener barriers.The internal Barrier I/O provides an external power input terminal to provide intrinsically safe power supply for 4-20 mA sensors.

When used in a three module redundant(TMR)configuration,the process variable monitors must be installed adjacent to each other in groups of three.When used in this configuration,the monitor adopts two types of voting to ensure accurate operation and avoid losing machine protection due to a single point of failure.

application area

The Bently Nevada 3500/62 process variable monitor is widely used in various industries,including oil and gas,power generation,chemical processing,and manufacturing.It is very suitable for applications where real-time monitoring and analysis of process variables are crucial for ensuring safe and efficient operations.
