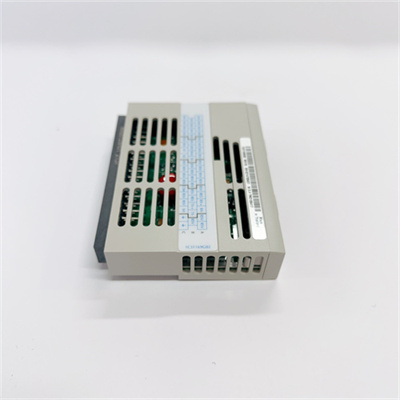

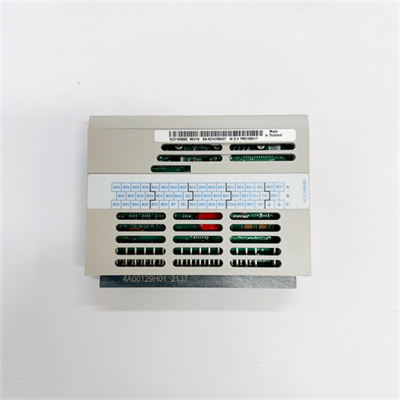

1C31169G02

1C31169G02 Specifications

Manufacturer: Emerson Automation Solutions

Part Number: 1C31169G02

Series: Ovation

Type: Serial Link Controller Module

Description:

The 1C31169G02 is a Serial Link Controller Module from Emerson Automation Solutions’ Ovation control system. It is used to communicate with serial devices, such as RTUs, PLCs, and other controllers. The module supports RS-485 communication and can be configured to operate in either half-duplex or full-duplex mode.

Specifications:

• Communication protocol: RS-485
• Baud rates: 9600, 19200, 38400, 57600, 115200
• Data bits: 7 or 8
• Parity: None, Odd, Even
• Stop bits: 1 or 2
• Node address: 1 to 31
• Dimensions: 1.75″ x 6.2″ x 10.6″ (44.5 mm x 157.5 mm x 270 mm)
• Weight: 1.2 lbs (0.54 kg)

•

  1C31169G02

Features:

• Supports RS-485 communication
• Configurable for half-duplex or full-duplex operation
• Supports multiple baud rates, data bits, parity, and stop bits
• Supports up to 31 nodes on a single bus
• Easy to install and configure

•

  1C31169G02

Applications:

• Industrial automation
• Oil and gas
• Power generation
• Water and wastewater treatment
• Building automation

•

  1C31169G02

Additional Information:

For more information on the 1C31169G02 Serial Link Controller Module, please refer to the Emerson Automation Solutions Ovation documentation.

Here are some additional resources that you may find helpful:

• Emerson Automation Solutions Ovation website https://www.emerson.com/en-us/automation/ovation
• 1C31169G02 datasheet https://www.plc-module.com/Product/529.html
• Ovation system manual https://www.emerson.com/documents/automation/ovation-user-manuals-guides-en-67624.pdf

I hope this information is helpful. Please let me know if you have any other questions.
