05701-A-0361 Honeywell Product Details

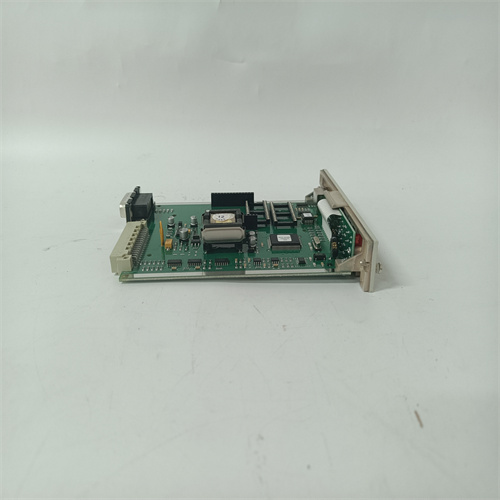

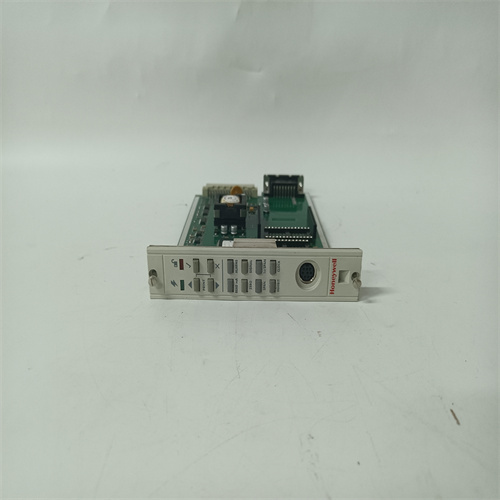

Product Name: 05701-A-0361 Universal Electrical Module
Product Family: Universal Electrical Series
Manufacturer: Honeywell
Product Description:
The 05701-A-0361 is a versatile module designed for use in general electrical systems. It is engineered for harsh industrial environments and provides exceptional performance and flexibility.
Product Features:
- 1 analog input channel
- 4 digital input channels
- 4 digital output channels
- Programmable input/output configuration
- Isolation: 1500Vrms between input and output
- LED indicators for status indication
- Compact design for space-saving installation
Applications:
- Process control systems
- Safety instrumented systems
- Gas and oil facilities
- Power facilities
- Nuclear power plants
- Other industrial applications
Benefits:
- High reliability: Built with high-quality components and undergoes rigorous testing to ensure reliability
- Easy to use: Designed for easy installation and maintenance
- Compact design: Saves space in control panels
- Cost-effective: Provides a reliable and cost-effective solution
Certifications:
- UL 508 Listed
- CSA Certified
- CE Compliant
Technical Specifications:
| Parameter | Value |
|---|---|
| Analog Input | 0-5Vdc, 0-10Vdc, 4-20mA |
| Digital Input | 24Vdc |
| Digital Output | 24Vdc, 0.5A |
| Indicators | LED |
| Dimensions | 80 x 45 x 22 mm (3.15 x 1.77 x 0.87 in) |
| Weight | 0.2 kg (0.44 lbs) |
| Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
Related Information:
- Honeywell Website: https://www.honeywell.com/
- Honeywell Universal Electrical Series Product Manual: https://manualzz.com/doc/o/h6xi1/r7284u1004-universal-electronic-oil-primary-wiring
Note:
- The 05701-A-0361 is a complex device that should be installed and maintained by a qualified electrician.
Additional Resources:
- 05701-A-0361 Datasheet: https://www.nexinstrument.com/05701-a-0361
Please note that the information provided here is based on publicly available data and may not be complete or accurate. It is recommended to consult the official Honeywell documentation for the most up-to-date information.
Here is some additional information you may need:
- Product Order Number: 05701-A-0361
- Product Price: Please contact your local distributor for pricing
- Product Warranty: 18 months
If you have any further questions, please feel free to ask.
