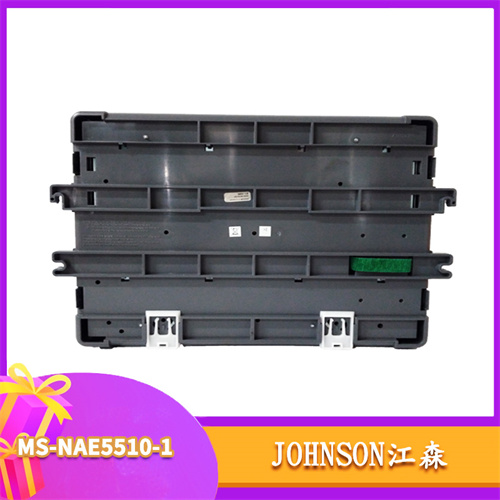

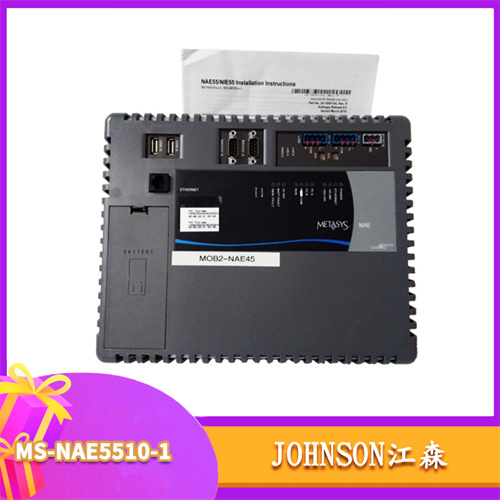

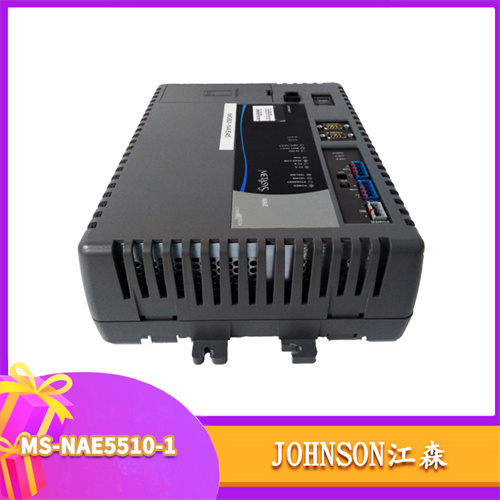

Product Model: Johnson Controls (江森) MS-NAE5510-1

Product Parameters:

• Input Voltage: 24V DC ± 10%¹
• Operating Temperature: -10℃ to +50℃¹
• Storage Temperature: -20℃ to +70℃¹
• Humidity: 10% to 90% RH (non-condensing)¹

•

  江森-MS-NAE5510-1

Product Specifications:

• Processor: ARM Cortex-M4 core¹
• Memory: 512KB Flash, 96KB RAM¹
• Digital Inputs: 8 channels, 24V DC¹
• Digital Outputs: 8 channels, 24V DC, 0.5A per channel¹
• Analog Inputs: 4 channels, 0-10V DC¹
• Analog Outputs: 4 channels, 0-10V DC, 12-bit resolution¹
• Communications: Ethernet, Modbus, TCP, RS485¹

Dimensions:

• 120mm × 80mm × 40mm¹

•

  江森-MS-NAE5510-1

Weight:

• 250g¹

Features:

• High-speed Processing: Provides fast response time¹
• Multi-channel I/O: Provides maximum flexibility¹
• Built-in Diagnostics and Fault Detection: Improves reliability¹
• Easy-to-use Programming Interface: Simplifies operation¹
• Compact and Durable Design: Suitable for harsh environments¹

Functions:

• The MS-NAE5510-1 controller is designed to provide precise control and monitoring of a wide range of industrial processes¹.
• It uses industry-standard communication protocols like BACnetTM, LONWORKS, and N2 bus to monitor and manage HVAC (heating, ventilation, and air conditioning) systems, lighting, security, and fire systems².
• It can provide monitoring, alerting, event management, data exchange, trend analysis, energy management, scheduling, and data storage².
• The controller comes with a web-based user interface and uses security technologies from the IT industry².

Application Areas:

• MS-NAE5510-1 is suitable for applications in complex buildings such as commercial offices, hospitals, large factories, and others²³.

Please note that the specifications and features mentioned above are based on the information available at the time of writing. It is recommended to consult the official documentation or the manufacturer’s website for the most up-to-date and accurate information.
