Bently Nevada 9200-06-01-10-00 Product Details, Specifications, Parameters, and Applications

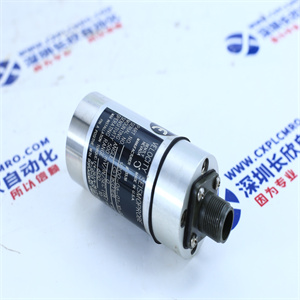

The Bently Nevada 9200-06-01-10-00 is a two-wire vibration speed sensor, part of the 9200 series, from the renowned Bently Nevada, a leader in vibration monitoring products. This sensor is specifically designed for continuous monitoring or periodic measurements in conjunction with testing or fault diagnosis instrumentation.

Product Overview:

Brand: Bently Nevada
Model: 9200-06-01-10-00
Type: Two-Wire Vibration Speed Sensor

Product Specifications:

Measurement: The sensor is designed to measure the absolute (relative to free space) vibration of bearing boxes, housings, or structures.
Construction: The 9200-06-01-10-00 is a two-wire sensor that consists of a sensor, cables, and optional vibration monitors.
Technology: It employs a moving coil technology, providing a voltage output directly proportional to the sensor’s vibration speed. This technology reduces sensitivity to impulse or pulsed excitation, making it a preferred choice for certain applications.
Cable Options: The sensor is compatible with various cables, including the 9571 standard cable and the 84661 armored cable, both of which are available in multiple lengths.

Product Parameters:

Sensitivity: 20 mV/mm/s (500 mV/in/s) ±5% at 100 Hz (6,000 cpm).
Frequency Response: Ranges from the minimum operating frequency of 10 Hz (600 cpm) to 1 kHz (60,000 cpm).
Installation: It can be installed using M10X1 double-headed bolts.
Cable Lengths: The cables connecting the sensor to the monitoring equipment can be as long as 305 meters (1,000 feet).

Applications:

The Bently Nevada 9200-06-01-10-00 finds applications across multiple industries, including power generation, steel, chemicals, and machinery. It is particularly suitable for monitoring the vibration speeds of rotating and reciprocating machinery such as turbines, compressors, pumps, fans, gearboxes, and reciprocating compressors.

Please note that specifications and applications may vary depending on specific requirements and industry needs. It is recommended to consult with a professional or technical expert for detailed information and guidance on its usage and applications.
