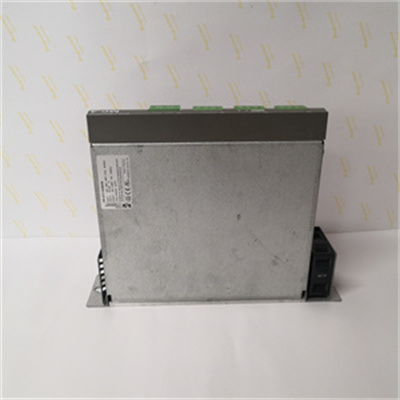

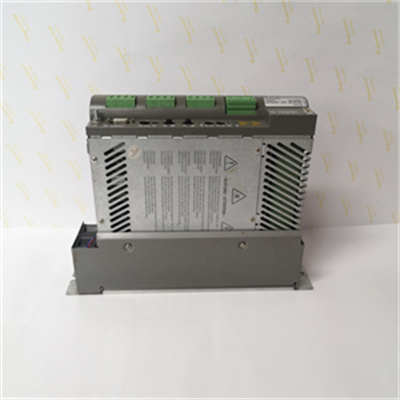

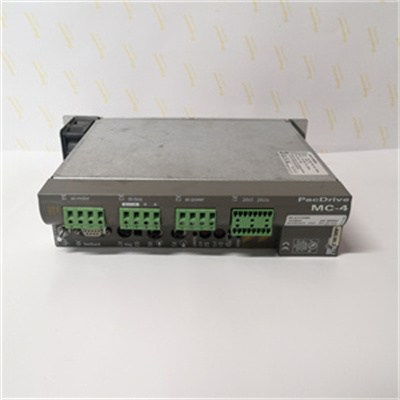

ELAU MC-41110400 is a high-performance servo controller module.The following is a detailed introduction to it:
1.Product Overview
ELAU MC-41110400 is produced by the ELAU brand under SCHNEIDER,Germany,and is an important part of modern motion control.It integrates the power supply unit,the final stage and the software regulator,communicates with the PacController or PacPC through a fiber optic cable,and is suitable for a distributed structure.The driver does not require a user program,has single-turn and multi-turn processing functions,and is widely used in automation equipment such as industrial robots and CNC machining centers.
2.Technical Features
High integration:The power supply unit,the final stage and the software regulator of the axis are integrated in a compact housing,simplifying the system structure.
Strong communication capability:Communicates with the PacController or PacPC through a fiber optic cable,and supports a variety of communication protocols,such as Sercos III,CAN,Ethernet,etc.
High control accuracy:Using advanced vector control algorithms,it realizes three-loop closed-loop control of current,speed and position,and improves control accuracy and response speed.
Rich in functions:With additional functions such as automatic motor identification,250%overload capacity,integrated SERCOS interface,etc.,the flexibility and reliability of the system are enhanced.
III.Technical parameters
The main technical parameters of ELAU MC-41110400 may include(specific parameters may vary depending on product batches or configurations):
Phase:3 phases
Rated connection voltage:AC 380V(-10%)to 480V(+10%)
Rated current:10A
Control voltage/power:DC 24V(-15%/+25%)/1A
Electronic power supply:about 12W
Ventilation:internal fan
IV.Application areas
ELAU MC-41110400 is suitable for various occasions requiring high-precision motion control,such as:
Industrial robots:used to realize various complex movements and trajectory control.
CNC machining centers:used to realize precise feeding and positioning of tools.
Automation equipment:such as automated assembly lines,automated packaging lines,etc.,used to realize precise transportation and positioning of materials.
5.Product Advantages
Reduced cost:Reduce overall system cost by minimizing hardware requirements,saving cabinet space,and eliminating user settings for panel and PLC communication.
Easy to integrate:Provides a rich industrial image library and a user-friendly environment,making hardware configuration,module ladder application development,and HMI design more convenient.
Power supply support:The module’s low-voltage power supply supports 24/48VDC power supply,and the original high-voltage power supply supports 125/250VDC or 120/240VAC in the same unit.These can be used separately,or each can be used in the same axis unit to provide redundant power from different sources,such as substation AC power and battery backup.
