GE MRP689579 IS230SNIDH1A Product Details

Product Overview

GE MRP689579 IS230SNIDH1A is an isolated digital input module in the General Electric(GE)Mark VIe series control system.It is mainly used to receive digital signals from external devices such as switches and relays,and isolate these signals and input them into the control system to ensure the safety and reliability of the control system.

Main Functions

Digital Signal Input:Receive digital signals from various switches,relays and other devices.

Signal Isolation:Isolate the input digital signal from the control system to prevent interference and damage.

Signal Processing:Process the input digital signal and convert it into a signal that can be recognized by the control system.

Product Features

High Reliability:Suitable for industrial environments,with high stability and reliability.

Isolation Design:Use optocouplers or other isolation technologies to effectively isolate the input signal and control system.

Modular Design:Convenient installation and maintenance.

Flexible Configuration:Can be configured according to different application requirements,such as input type,filtering,etc.

Application scenarios

Mark VIe control system:Mainly used in GE’s Mark VIe series control systems to collect various digital signals,such as switch status,alarm signals,etc.

Industrial automation:Widely used in industrial automation fields such as power plants and petrochemical plants to monitor and control equipment status.

GE MRP683026 IS200SDIIH1ADB Product Details

Product Overview

GE MRP683026 IS200SDIIH1ADB is an isolated contact input module in the General Electric(GE)Mark VIe series control system.It is mainly used to receive digital signals from external devices such as switches and relays,and isolate these signals and input them into the control system to ensure the safety and reliability of the control system.

Main Functions

Digital Signal Input:Receive digital signals from various switches,relays and other devices.

Signal Isolation:Isolate the input digital signal from the control system to prevent interference and damage.

Signal Processing:Process the input digital signal and convert it into a signal that can be recognized by the control system.

Product Features

High Reliability:Suitable for industrial environments,with high stability and reliability.

Isolation Design:Use optocouplers or other isolation technologies to effectively isolate the input signal and control system.

Modular Design:Convenient installation and maintenance.

Flexible Configuration:Can be configured according to different application requirements,such as input type,filtering,etc.

Application scenarios

Mark VIe control system:Mainly used in GE’s Mark VIe series control systems to collect various digital signals,such as switch status,alarm signals,etc.

Industrial automation:Widely used in industrial automation fields such as power plants and petrochemical plants to monitor and control equipment status.

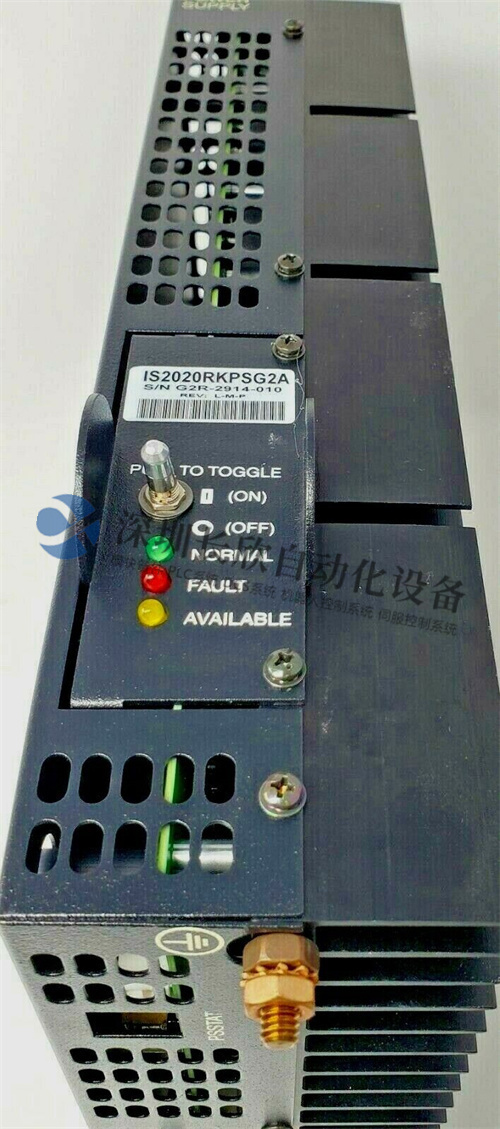

GE IS2020RKPSG2A Product Details

Product Overview

GE IS2020RKPSG2A is a VME chassis power supply module in the General Electric(GE)Mark VI series control system.It is mainly used to provide stable power to various modules in the VME chassis to ensure the normal operation of the system.

Main Functions

Power Conversion:Converts the input AC power to the DC voltage required by the VME chassis.

Voltage Regulation:Provides a stable output voltage that is not affected by load changes.

Overcurrent Protection:With overcurrent protection function to prevent equipment damage.

Overvoltage Protection:With overvoltage protection function to ensure equipment safety.

Product Features

High Reliability:Suitable for industrial environments,with high stability and reliability.

Modular Design:Easy to install and maintain.

High Efficiency:High conversion efficiency and reduced energy loss.

Application Scenarios

Mark VI Control System:Mainly used in GE’s Mark VI series control system to power the VME chassis.

Industrial Automation:Widely used in industrial automation fields such as power plants and petrochemical plants.

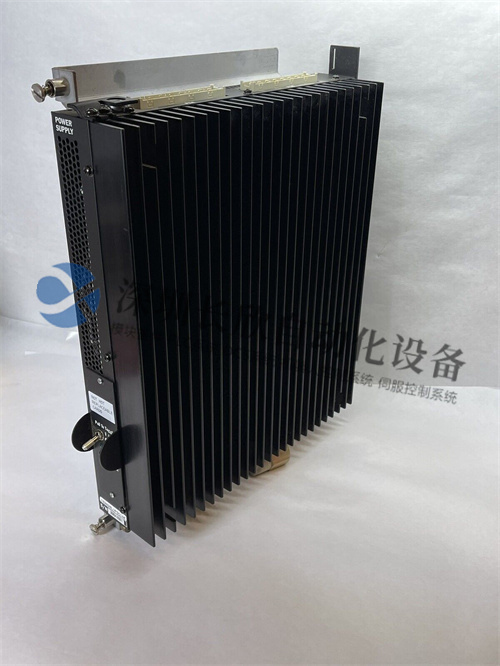

GE IS2020LVPSG2 Product Details

GE IS2020LVPSG2 is a low-voltage power supply module in the General Electric(GE)Mark VIe series control system.It is mainly used to provide stable low-voltage DC power for various modules in the control system.

Main Functions

Power Conversion:Converts input AC or high-voltage DC into low-voltage DC to power the system.

Voltage Regulation:Provides stable output voltage that is not affected by load changes.

Overcurrent Protection:Has overcurrent protection function to prevent equipment damage.

Overvoltage Protection:Has overvoltage protection function to ensure equipment safety.

Product Features

High Reliability:Suitable for industrial environments,with high stability and reliability.

Modular Design:Easy to install and maintain.

High Efficiency:High conversion efficiency and reduced energy loss.

Application Scenarios

Mark VIe Control System:Mainly used in GE’s Mark VIe series control system to provide power for the system.

Industrial Automation:Widely used in industrial automation fields such as power plants and petrochemical plants.

Product Structure

IS2020LVPSG2 is usually a rectangular circuit board with components such as transformers,rectifiers,filters,etc.There are different connectors on the board for connecting input power and output loads.

Technical Parameters(Part)

Input Voltage:Depends on the specific model,usually AC or high-voltage DC.

Output Voltage:A variety of output voltages are available,such as 5V,12V,24V,etc.

Output Current:Depends on the specific model.

Efficiency:Depends on the specific model.

GE IS220SRTDH2A Product Details

Product Overview

GE IS220SRTDH2A is a single-channel RTD input terminal board in the General Electric(GE)Mark VIe series control system.It is mainly used to connect and collect temperature signals from RTD sensors and convert them into digital signals for processing by the control system.

Main Functions

RTD Signal Input:Can connect 8 RTD sensors to measure temperature.

Signal Conditioning:Process the input RTD signal to improve signal quality.

Analog-to-Digital Conversion:Convert analog RTD signals into digital signals.

Product Features

High Reliability:Suitable for industrial environments with high stability and reliability.

Compact Design:Compact structure,suitable for installation on DIN rails or flat surfaces.

High-density wiring:High-density European standard wiring terminals are used for easy wiring.

Onboard ID chip:The system can identify the terminal board through the onboard ID chip for easy diagnosis.

Application Scenarios

Mark VIe Control System:Mainly used in GE’s Mark VIe series control systems to collect temperature measurements.

Industrial Automation:Widely used in industrial automation fields such as power plants and petrochemical plants to measure and control temperature.

Product Structure

IS220SRTDH2A is usually a rectangular circuit board with terminal blocks,analog-to-digital converters,etc.There are different connectors on the board for connecting other modules and devices.

Technical Parameters(Part)

Number of RTD input channels:8

RTD type:Supports multiple types of RTDs

Measurement range:Depends on RTD type and configuration

Accuracy:Depends on RTD type and configuration

GE IS220PSCAH1A Product Details

Product Overview

GE IS220PSCAH1A is a serial communication input/output module in the General Electric(GE)Mark VIe series control system.It is mainly used to connect various serial devices,such as PLC,inverter,instrument,etc.,to achieve data exchange and control.

Main Functions

Serial Communication:Supports multiple serial communication protocols such as RS-232,RS-422 and RS-485.

Multi-channel:With multiple independent serial communication channels,multiple devices can be connected at the same time.

Flexible Configuration:Flexible configuration according to different devices and communication protocols.

Data Conversion:Convert serial data into digital signals that can be recognized by the control system.

Product Features

High Reliability:Suitable for industrial environments,with high stability and reliability.

Modular Design:Easy to install and maintain.

Flexible Configuration:Can be configured according to different application requirements.

Application Scenarios

Mark VIe Control System:Mainly used in GE’s Mark VIe series control system to connect various serial devices.

Industrial Automation:Widely used in industrial automation fields such as power plants and petrochemical plants to achieve communication and control between equipment.

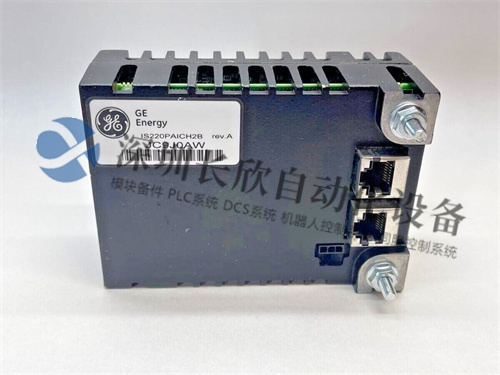

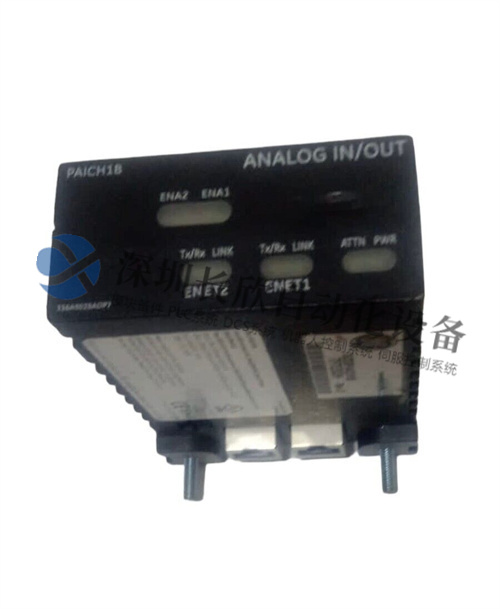

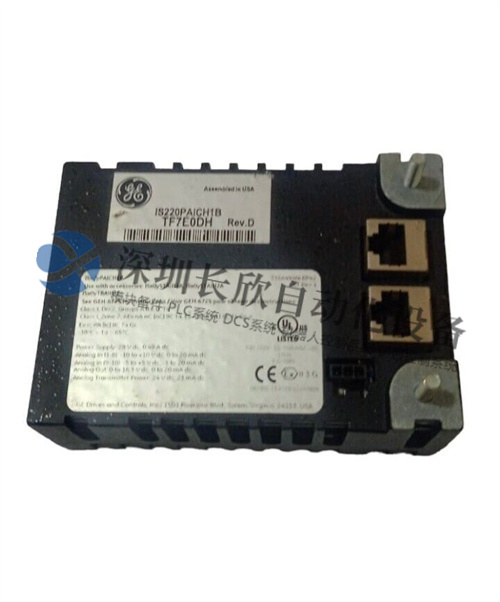

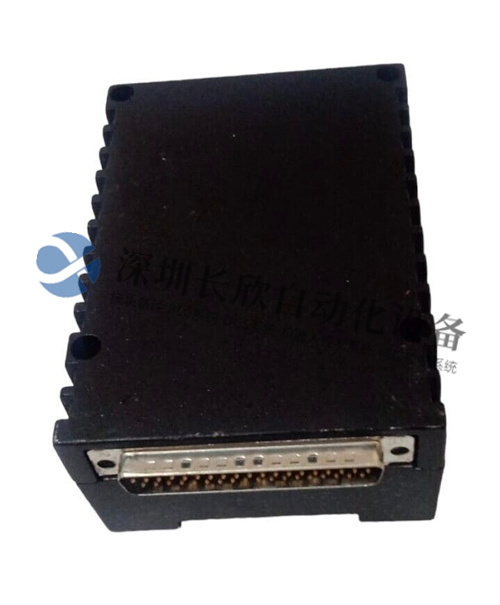

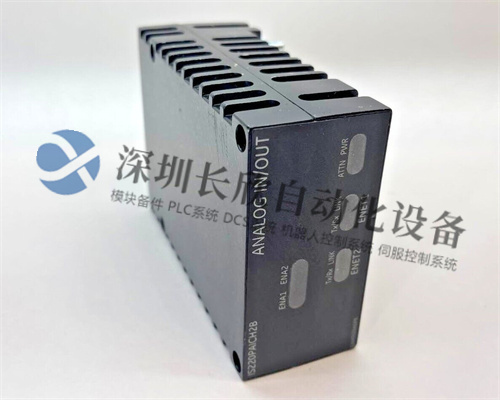

GE IS220PAICH1B Product Details

Product Overview

GE IS220PAICH1B is an analog input/output module in the General Electric(GE)Mark VIe series control system.It is mainly used to connect analog sensors(such as pressure sensors,temperature sensors,etc.)and actuators,convert analog signals into digital signals,and process them in the control system.

Main Functions

Analog Signal Input:Can handle up to 10 analog input signals,including 5V or 10V voltage input and 0-20mA current loop input.

Analog Signal Output:Can convert digital signals into analog signals for controlling actuators.

Ethernet Communication:Communicates with the Mark VIe controller via dual 100MB full-duplex Ethernet ports.

Flexible Configuration:Can be flexibly configured according to different application requirements,such as input type,range,filtering,etc.

Product Features

High Reliability:Suitable for industrial environments,with high stability and reliability.

Modular Design:Convenient installation and maintenance.

Flexible Configuration:Can be configured according to different application requirements.

Dual Ethernet Ports:Provides redundant and high-bandwidth communication.

Application scenarios

Mark VIe control system:Mainly used in GE’s Mark VIe series control systems to collect process variables and control actuators.

Industrial automation:Widely used in industrial automation fields such as power plants and petrochemical plants.

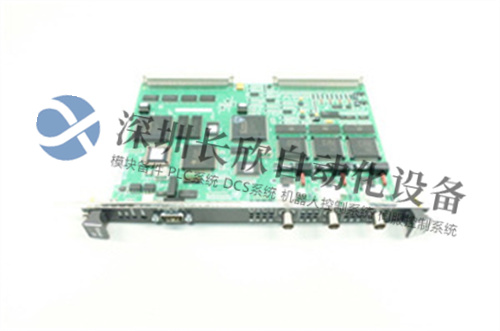

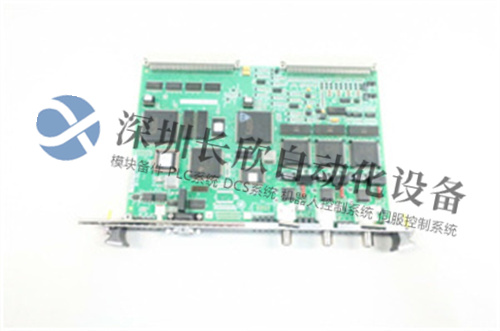

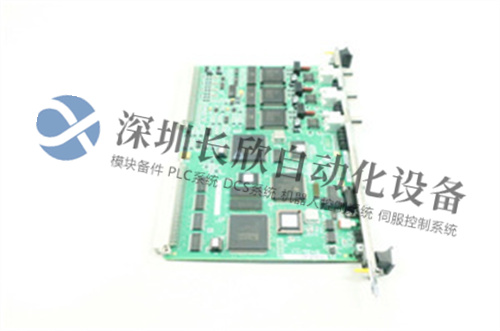

GE IS215VCMIH2CC Product Details

GE IS215VCMIH2CC is an analog input module designed for the Mark VI series control system produced by General Electric(GE).This module is mainly used to receive analog signals from external devices,such as temperature sensors,pressure sensors,etc.,and convert these analog signals into digital signals for processing by the control system.

Main functions

Analog signal input:Receive signals from various analog sensors,such as voltage,current,etc.

Signal conditioning:Filter and amplify the input analog signal to improve the signal quality.

Analog-to-digital conversion:Convert analog signals into digital signals for processing by the control system.

Product features

High precision:Able to accurately measure analog signals.

High reliability:Suitable for industrial environments with high stability and reliability.

Modular design:Easy to install and maintain.

Flexible configuration:Can be configured according to different application requirements,such as selecting different input ranges,filtering methods,etc.

Application scenarios

Mark VI control system:Mainly used in GE’s Mark VI series control systems to collect various process variables,such as temperature,pressure,flow,etc.

Industrial Automation:Widely used in industrial automation fields such as power plants and petrochemical plants to measure and control process parameters.

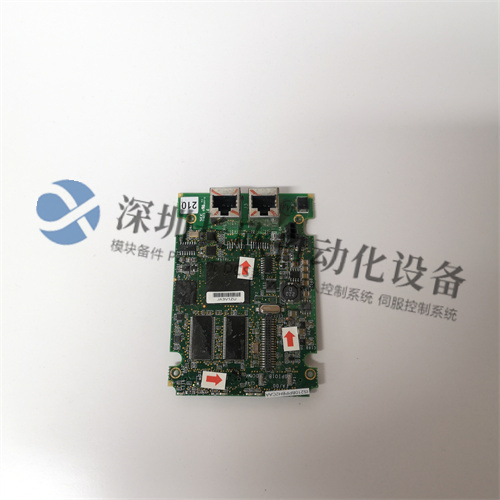

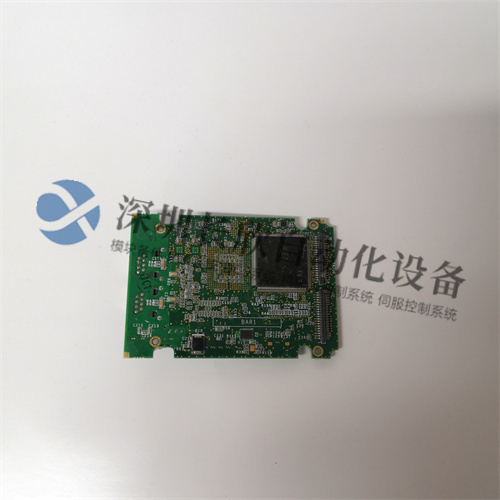

GE IS210BPPBH2CAA Product Details

Product Overview

GE IS210BPPBH2CAA is a backup protection module for Mark VI series control systems produced by General Electric(GE).This module plays a vital role in the system,mainly used to provide redundancy and fault protection to ensure the reliable operation of the system.

Main Functions

Backup Protection:Provide backup function when the main system fails to ensure the continuous operation of the system.

Fault Detection:Monitor the system status,detect and report faults in time.

Data Storage:Store system configuration and operation data to quickly restore the system status when the fault is restored.

Product Features

High Reliability:Redundant design is adopted to improve the reliability of the system.

Modular Design:Convenient installation and maintenance.

Flexible Configuration:Can be configured according to different application requirements.

Application Scenarios

Mark VI Control System:Mainly used in GE’s Mark VI series control system to provide backup protection for the system.

Industrial Automation:Widely used in industrial automation fields such as power plants and petrochemical plants to ensure the reliable operation of key equipment.

Leybold PTR225 Product Details

Leybold PTR225 Introduction

Leybold PTR225 is a high-performance vacuum measurement sensor,widely used in vacuum systems for accurate measurement of low pressure ranges.It uses the Penning gauge principle and can measure extremely low pressures,suitable for scientific research,semiconductor manufacturing,vacuum coating and other fields.

Working principle of PTR225

Penning gauge is a cold cathode discharge tube.Under the action of a high-frequency electric field,gas molecules are ionized to produce ions.By measuring the ion current,the gas pressure in the vacuum chamber can be calculated.PTR225 uses this principle to achieve accurate measurement of low pressure ranges.

Main features of PTR225

High sensitivity:Able to measure extremely low pressures,usually in the range of 10^-9 to 10^-2 mbar.

Wide measurement range:Covers a wide range of pressures from low vacuum to ultra-high vacuum.

High stability:Has good long-term stability and repeatability.

Strong anti-interference ability:Not easily affected by external interference,such as magnetic fields,electric fields,etc.

Compact structure:Compact design,easy installation.

Applications of PTR225

Vacuum system monitoring:Used to monitor the operating status of the vacuum system to ensure the stability of the vacuum degree.

Leak detection:Used to detect the leak point of the vacuum system.

Thin film deposition:Used to control the vacuum degree during the thin film deposition process.

Scientific research:Widely used in scientific research in the fields of physics,chemistry,etc.
