The 05701-A-0301 is a single-channel control card manufactured by Honeywell. It is part of the Honeywell System 57 family of gas detection controllers. The card is used to monitor a single gas detector and provide control signals to alarm devices and other equipment.

Specifications

• Part Number: 05701-A-0301
• Manufacturer: Honeywell
• Series: Honeywell System 57
• Input: 4-20 mA
• Output: Relay
• Power Supply: 24 VDC
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -55°C to +95°C
• Humidity: 0 to 95% RH, non-condensing
• Vibration: 10 to 2000 Hz, 0.015″ amplitude
• Shock: 15 g, 11 ms half sine
• Approvals: CE, UL

Dimensions

• Height: 4.3 in (110 mm)
• Width: 3.5 in (90 mm)
• Depth: 1.2 in (30 mm)

Weight

• 0.5 lb (0.2 kg)

Features

• Single-channel input: The 05701-A-0301 can monitor a single gas detector with a 4-20 mA output.
• Relay output: The card provides a relay output that can be used to activate alarm devices or other equipment.
• Configurable alarm setpoints: The alarm setpoints for the card can be configured using the Honeywell System 57 controller.
• Fault detection: The card can detect and report faults to the Honeywell System 57 controller.

Applications

The 05701-A-0301 can be used in a wide variety of applications, including:

• Industrial process control: The card can be used to monitor gas levels in industrial processes, such as chemical plants, refineries, and power plants.
• Environmental monitoring: The card can be used to monitor air quality in indoor and outdoor environments.
• Building ventilation: The card can be used to monitor gas levels in building ventilation systems to ensure that the air is safe for occupants.
• Laboratory safety: The card can be used to monitor gas levels in laboratories to protect workers from exposure to hazardous gases.

•

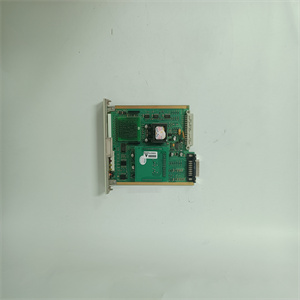

  05701-A-0301

Additional Information

For more information on the 05701-A-0301, please visit the Honeywell website: https://buildings.honeywell.com/us/en/products/by-category/sensors/air-quality-sensors/honeywells-gas-controller-and-networkable-sensors

Pricing and Availability

The 05701-A-0301 is available from a variety of authorized distributors. Pricing will vary depending on options and configuration.
